Jet Boat Engine Harness Diagrams
« on: December 28, 2007, 06:13:27 PM »
Here are 4 different engine harness diagrams, complete with wire gauge and colors.

Two of them show points ignition w/1 wire and 3 wire alternators.

The other two show HEI ignition w/1 wire and 3 wire alternators.

If you're using an aftermarket ignition such as an MSD, be sure and follow their instructions for wiring the box to the distributor.

If you're using an MSD R2R distributor by itself:
Black = Ground
Red = Ignition Hot & (+) terminal of coil
Orange = Tach Signal & (-) terminal of coil
No ballast resistor required







« Last Edit: December 28, 2007, 06:22:08 PM by Jetaholic »
To err is human, to forgive divine...except for running Fords ;D

F - Found
O - On
R - River
D - Dead


FORKEDUP

  • Macho Member
  • ******
  • Join Date: Jun 2007
  • location: scottsdale
  • Posts: 2,078
  • Karma: +4/-0
    • View Profile
  • Liked:
  • Likes Given: 2
Re: Jet Boat Engine Harness Diagrams
« Reply #1 on: December 29, 2007, 10:44:57 PM »
i think you answered a question i was getting ready to ask, i  have never run an alternator before and am installing a one wire type, i am not running an aux solenoid so the wire would just run to the solenoid on the starter, right??, sorry if this is a dumb question, but i have never run an alternator in my boat before
BEAUTY IS ONLY A LIGHT SWITCH AWAY
26' kachina force 496bbc
19' eliminator daytona 496bbc (still in my heart)

propless

  • Macho Member
  • ******
  • Join Date: Jan 2007
  • location: Clovis CA
  • Posts: 1,904
  • Karma: +11/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #2 on: December 29, 2007, 11:15:58 PM »
 Yes,  a one wire alternator conects to constant 12v.  The battery cable on the starter solenoid is a good place.  ;D
Welcome to the club of broken boats :o  Pay here$ bend over and move along.

Jetaholic

  • Sr. Member
  • ****
  • Join Date: Jan 2007
  • location: Fresno CA
  • Posts: 285
  • Karma: +1/-0
  • On Tour With The Banned
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #3 on: December 29, 2007, 11:45:26 PM »
i think you answered a question i was getting ready to ask, i  have never run an alternator before and am installing a one wire type, i am not running an aux solenoid so the wire would just run to the solenoid on the starter, right??, sorry if this is a dumb question, but i have never run an alternator in my boat before

Yeah you can run it to the point where the positive battery cable connects to the back of the starter....

Or you can connect it direct to the + terminal of the battery if you want also.

However, honestly I highly recommend the aux solenoid for reasons mentioned in my article regarding aux solenoids.
To err is human, to forgive divine...except for running Fords ;D

F - Found
O - On
R - River
D - Dead

GAWnCA

  • Macho Member
  • ******
  • Join Date: Aug 2007
  • location: Sacramento, CA U.S.A.
  • Posts: 1,591
  • Karma: +1/-1
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #4 on: December 29, 2007, 11:57:25 PM »
So, Jet,  where do you get the best deal on the aux solenoid?  and is there nay particular size requirement?
~Greg
Forgive your enemies.  It messes up their heads.

Jetaholic

  • Sr. Member
  • ****
  • Join Date: Jan 2007
  • location: Fresno CA
  • Posts: 285
  • Karma: +1/-0
  • On Tour With The Banned
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #5 on: December 30, 2007, 12:01:58 AM »
So, Jet,  where do you get the best deal on the aux solenoid?  and is there nay particular size requirement?

Just go to any auto parts store and buy a solenoid for any Ford truck. Shouldn't be any more than about $20.
To err is human, to forgive divine...except for running Fords ;D

F - Found
O - On
R - River
D - Dead

GAWnCA

  • Macho Member
  • ******
  • Join Date: Aug 2007
  • location: Sacramento, CA U.S.A.
  • Posts: 1,591
  • Karma: +1/-1
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #6 on: December 30, 2007, 12:34:00 AM »
Thanks.  I've got to put in an order with Summit anyway so I'll check them out.
~Greg
Forgive your enemies.  It messes up their heads.

fixxzilla

  • Newbie
  • *
  • Join Date: Apr 2008
  • location: crestview fl
  • Posts: 27
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #7 on: April 23, 2008, 10:17:44 PM »
hey these are sweet i need these diagrams but it wont save on my pc  :banghead:

crewchief22

  • Team Member
  • Informative Member
  • *******
  • Join Date: Apr 2007
  • location: Mentone Beach, CA
  • Posts: 4,805
  • Karma: +36/-0
    • View Profile
  • Liked:
  • Likes Given: 134
Re: Jet Boat Engine Harness Diagrams
« Reply #8 on: April 24, 2008, 05:44:34 AM »
I haven't tried saving on my computer, but I did print one out and use it while going through some of the wiring  ;D
  • Boat #1: '77 Hondo Pantera GT Jet
"Racing is life!  Anything that happens before or after, is just waiting"    Steve McQueen

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Brad @ SCJB

  • Administrator
  • Informative Member
  • *******
  • Join Date: Oct 2006
  • location: Las Vegas, NV
  • Posts: 10,886
  • Karma: +98/-0
  • HNIC
    • View Profile
    • SoCal Jet Boats.com
  • Liked:
  • Likes Given: 103
Re: Jet Boat Engine Harness Diagrams
« Reply #9 on: April 24, 2008, 06:47:59 AM »
hey these are sweet i need these diagrams but it wont save on my pc  :banghead:

you can do it, its just a little tricky.

right click on the image, select propertys. highlight and copy (ctrl + c) the address (url). paste it (ctrl + v) into your web browser address bar......now right click on the image and select 'save as...'

im not sure why it does that, i just havent had the time to look into it.
  • Boat #1: 1978 Liberty
  • Boat #2: 199? 21' Open Bow Ultra

gregb

  • Full Member
  • ***
  • Join Date: Sep 2007
  • location: Redondo Beach
  • Posts: 118
  • Karma: +1/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #10 on: April 24, 2008, 03:21:32 PM »
If you use a Ford solenoid I don't think you want to ground that second small connection, that one usually goes to the coil so it get's voltage while cranking and is hot while the solenoid is energized, the solenoid grounds through the bolts that hold it to the firewall.  There are some solenoids, I usually see them in motorhome applications, that use that for completeing the circuit, but the standard Ford starter solenoid isn't one of them.

beerjet

  • Team Member
  • Informative Member
  • *******
  • Join Date: Nov 2006
  • location: Rancho cucamonga
  • Posts: 9,009
  • Karma: +70/-0
    • View Profile
  • Liked:
  • Likes Given: 22
Re: Jet Boat Engine Harness Diagrams
« Reply #11 on: April 24, 2008, 05:06:18 PM »
i dont but im all for stuffin shit in her ass to make her go away :-*

2savage4you

  • Informative Member
  • *******
  • Join Date: Jul 2007
  • location: Bullhead city
  • Posts: 5,244
  • Karma: +14/-1
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #12 on: April 24, 2008, 05:11:15 PM »
Do Chebby's need a solenoid? Ive never seen one on any of my trucks , and im getting ready to wire a BBC HAHAHA not a FORD :banghead:

Yeah Baby............do they?

2sav

beerjet

  • Team Member
  • Informative Member
  • *******
  • Join Date: Nov 2006
  • location: Rancho cucamonga
  • Posts: 9,009
  • Karma: +70/-0
    • View Profile
  • Liked:
  • Likes Given: 22
Re: Jet Boat Engine Harness Diagrams
« Reply #13 on: April 24, 2008, 07:15:08 PM »
Do Chebby's need a solenoid? Ive never seen one on any of my trucks , and im getting ready to wire a BBC HAHAHA not a FORD :banghead:

Yeah Baby............do they?

2sav
No they dont NEED one but it's cheaper to replace one of those $16 parts than a starter .

-beerjet-
i dont but im all for stuffin shit in her ass to make her go away :-*

skee

  • Hero Member
  • *****
  • Join Date: Feb 2008
  • location: Not close enough to the River!!
  • Posts: 644
  • Karma: +1/-1
  • The purpose of life is a life of purpose.....
    • View Profile
  • Liked:
  • Likes Given: 19
Re: Jet Boat Engine Harness Diagrams
« Reply #14 on: April 24, 2008, 09:05:27 PM »
Quote from: 2savage4you on Today at 05:11:15 PM
Do Chebby's need a solenoid? Ive never seen one on any of my trucks , and im getting ready to wire a BBC HAHAHA not a FORD

Yeah Baby............do they?

2sav

No they dont NEED one but it's cheaper to replace one of those $16 parts than a starter .

-beerjet-


Thats right,beerjet!  ;D  Well kinda...isnt there's BUILT into the starter?  ??? So when your solenoid goes out,as you said....you have to REPLACE THE STARTER!  :mad: Hey 2sav...where's the common sense in that?  ???  ::)  :banghead:  OH YEAH.....your a "chebby" guy!! They dont have any! LMFAO!
 Jus kiddin' here chebby guy's.....dont get yer panties in a bunch!  >:D

            For
            Oustanding
            River
            Driving!  8)
  • Boat #1: 1977 Spectra 18
As Joe Walsh say's....I'm just your Ordinary Average Guy.....With a Jet Boat!

hotrod56cars

  • Banned
  • Newbie
  • *
  • Join Date: Nov 2006
  • location: El Cajon, CA.
  • Posts: 21
  • Karma: +0/-8
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #15 on: April 24, 2008, 10:42:17 PM »
Quote from: 2savage4you on Today at 05:11:15 PM
Do Chebby's need a solenoid? Ive never seen one on any of my trucks , and im getting ready to wire a BBC HAHAHA not a FORD

Yeah Baby............do they?

2sav

No they dont NEED one but it's cheaper to replace one of those $16 parts than a starter .

-beerjet-


Thats right,beerjet!  ;D  Well kinda...isnt there's BUILT into the starter?  ??? So when your solenoid goes out,as you said....you have to REPLACE THE STARTER!  :mad: Hey 2sav...where's the common sense in that?  ???  ::)  :banghead:  OH YEAH.....your a "chebby" guy!! They dont have any! LMFAO!
 Jus kiddin' here chebby guy's.....dont get yer panties in a bunch!  >:D

            For
            Oustanding
            River
            Driving!  8)

We have a thread for that, it's called Ford vs. Chevy.  ;)  Read through that thread and cry me a... I mean call me in the morning.   :-*  J/K
Quote
NO REGRET$ ... Arguing on the internet is like competing in the Special Olympics / no matter how good you do you're still retarded!!!!!

                                                          1978  19' Mach 1 Tunnel jet

429heads

  • Full Member
  • ***
  • Join Date: Dec 2007
  • location: Fortmohave Az
  • Posts: 220
  • Karma: +3/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #16 on: April 24, 2008, 11:06:22 PM »
DESECRATING A CHEV BY RUNNING A FORD PART TO MAKE YOUR CHEV START :screwy:.... FOR THOSE OUT THERE WHO WOULD LIKE TO KNOW HOW TO WIRE A SOLENOID THE RIGHEIOUS WAY LIFT THE HOOD ON A FORD CAR OR TRUCK YOU WILL SEE THE POWER SIDE HAS THE BATTERY SIDE ON ONE SIDE AND OTHER SIDE IS THE STARTER SIDE SEPARATION OF POWER FORD HAS WIRED THERE CARS AND TRUCKS THIS WAY FOR OVER 60 YEARS. YOU CAN WIRE YOU STARTER WITH ONE CABLE GOING TO STARTER WITH JUMPER WIRE AT STARTER TO ENERGIZE STARTER NO POWER AT STARTER EXCEPT WHEN SOLENOID IS ENGAGED NO EXTRA WIRE RUNNING TO STARTER. MY CHEV IS WIRED LIKE A CHEV I DON'T DESECRATE A FORD PART TO MAKE MY CHEV START IN MY FLAT BOTTOM IT STARTS WITH ONE PUSH OF STARTER BUTTON.
I new that chev guys where wired strange :banghead: large print easy to read second time :screwy:

itsajesusthang

  • Jr. Member
  • **
  • Join Date: Apr 2009
  • location: crestview fl
  • Posts: 51
  • Karma: +0/-0
  • wheres the starter button
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #17 on: May 13, 2009, 08:11:57 PM »
hes got a good point there on the chvy starter i hate havin to wirethe thing befor i put it in lol ford is1 wire and ya cant drop the nut couse its big enuf to hold and ifya doo drop it you can findit lol.    For                                                                                                                                 Out                                                                                                                                   Runnin                                                                                                                                 Dumbasses

povertyjet

  • Hero Member
  • *****
  • Join Date: Sep 2008
  • location: Huntington Beach,CA
  • Posts: 535
  • Karma: +1/-0
  • age quod agis
    • View Profile
  • Liked:
  • Likes Given: 2
Re: Jet Boat Engine Harness Diagrams
« Reply #18 on: May 14, 2009, 04:27:50 AM »
Don,t worry Chevy boys...GM copied Ford and made one identical for their motorhome chasis.  Put this up before but here is the wiring diagram...



Napa/Echlin #ST81


p-jet
  • Boat #1: '73 Kona
I'll keep my freedom, my money and my guns...you keep the "change"
U.S. out of the United Nations, support HR2202, reinstate prop 187, waterboard all of them!!!

maddogg20

  • Sr. Member
  • ****
  • Join Date: Jan 2008
  • location: Rancho Cucamonga
  • Posts: 405
  • Karma: +1/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #19 on: May 15, 2009, 11:18:48 PM »
lol I just burned up my new starter trying to get my damn engine to start, hehehe imma try again tomorrow. :-)

Willow Wog

  • Hero Member
  • *****
  • Join Date: May 2008
  • location: chino hills
  • Posts: 1,228
  • Karma: +2/-0
  • What is this scjb.TV?
    • View Profile
  • Liked:
  • Likes Given: 6
Re: Jet Boat Engine Harness Diagrams
« Reply #20 on: March 14, 2010, 12:26:17 PM »

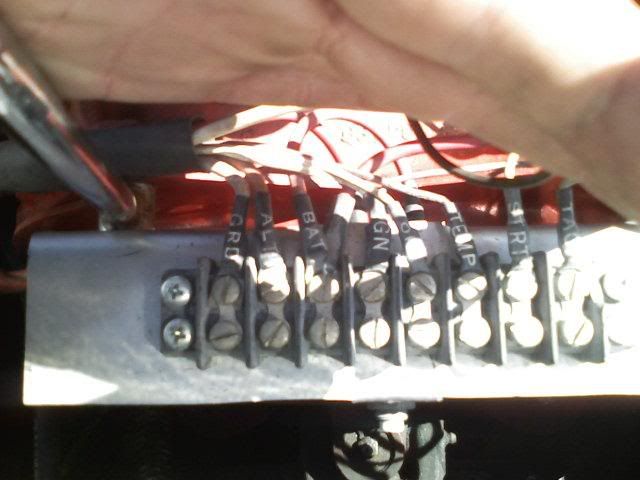

So im rewireing the boat today from the dash back and have a question. On the wireing block on the back of the motor there is a wire thats tagged alt. Why would that need to go to the dash? shouldn't that go to a constant 12v like off of the starter solenoid?

  • Boat #1: 1977 Hawaiian model? southwind splash
Coors light dreaming on a Keystone budget...

ROMPERSTOMPER

  • Sr. Member
  • ****
  • Join Date: May 2008
  • location: orange county, ca
  • Posts: 373
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #21 on: March 14, 2010, 01:32:54 PM »
 I have a push button soleniod and a billet mount that bolts to the back of the head for a bbc. I'm Not using it anymore. no room. make me an offer I cant refuse and its yours.
If you aint first your last.

Willow Wog

  • Hero Member
  • *****
  • Join Date: May 2008
  • location: chino hills
  • Posts: 1,228
  • Karma: +2/-0
  • What is this scjb.TV?
    • View Profile
  • Liked:
  • Likes Given: 6
Re: Jet Boat Engine Harness Diagrams
« Reply #22 on: March 15, 2010, 05:22:03 AM »
Anyone? Im trying to leave on thursday for the avi. and don't dont want it to not be charging.
  • Boat #1: 1977 Hawaiian model? southwind splash
Coors light dreaming on a Keystone budget...

Brad @ SCJB

  • Administrator
  • Informative Member
  • *******
  • Join Date: Oct 2006
  • location: Las Vegas, NV
  • Posts: 10,886
  • Karma: +98/-0
  • HNIC
    • View Profile
    • SoCal Jet Boats.com
  • Liked:
  • Likes Given: 103
Re: Jet Boat Engine Harness Diagrams
« Reply #23 on: March 15, 2010, 06:46:38 AM »
where does it currently go to on the dash?
  • Boat #1: 1978 Liberty
  • Boat #2: 199? 21' Open Bow Ultra

ROMPERSTOMPER

  • Sr. Member
  • ****
  • Join Date: May 2008
  • location: orange county, ca
  • Posts: 373
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
Re: Jet Boat Engine Harness Diagrams
« Reply #24 on: March 15, 2010, 11:20:10 AM »
voltage meeter. I think. I have the diagram for that harness. I can check it out when I get home.
If you aint first your last.




Powered by EzPortal
