Where is a good spot to drill a hole for my place diverter cable?

  • 15 Replies
  • 7157 Views

Boats N Hoes

  • Join Date: Sep 2010
  • Location: Santee
  • *
  • Jr. Member
  • **
  • Posts: 62
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« on: March 02, 2011, 01:50:48 PM »
I have a 73 Hondo Jet boat and I bought a place diverter for my boat. I now need to install the cable for the manual place diverter, where would you drill a hole out on my boat for the cable?I know it goes in the back of the boat but where is a good spot?.... Do i need to  place a seal to go around the cable or special something???? :o


ka0tyk

  • Join Date: Aug 2010
  • Location: huntington beach, ca
  • *
  • Informative Member
  • *******
  • Posts: 3,703
  • Karma: +30/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #1 on: March 02, 2011, 01:54:41 PM »
http://www.cpperformance.com/p-330-polished-43c-cable-seal.aspx

yes theres cable seals for the diverter.  just find a spot thats directly where it needs to go with no kinks or crazy bends on both the outside AND inside of your boat.  plus cable routing to the controls is a factor as well.

Nordie

  • Join Date: Dec 2007
  • Location: Las Vegas,NV
  • *
  • Team Member
  • Informative Member
  • *******
  • Posts: 4,132
  • Karma: +13/-0
  • never tattoo unlucky on your body, even if that is your luck it will come back ten fold!
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #2 on: March 02, 2011, 02:30:27 PM »
here you go...this is how mine was done, and i like it...the cable runs right down the stringer and right out of the boat




If im not posting..I'm pooping!

Marcsrollin

  • Join Date: Nov 2006
  • Location: El Cajon , Ca
  • *
  • Team Member
  • Informative Member
  • *******
  • Posts: 3,711
  • Karma: +33/-0
  • I'm so smoooth!
    • View Profile
  • Liked:
  • Likes Given: 37
« Reply #3 on: March 02, 2011, 02:44:03 PM »
I would drill the transom adapter and NOT the boat if at all possible.
  • Boat #1: 1978 TX-19 Youngblood
  • Boat #2: 1994 24 foot Sundancer Pontoon
Taco'd "a person or people that show up with one lake lice and a family of 50 and cram 3 people at a time on it with no disregard to boating rules or ethics. Usualy crap in toilets and throw shit paper in trash cans. Hang out at the boat ramp like its a swimming hole. Have zero insurance on anything they own and dont give two shits less about your property."

Boats N Hoes

  • Join Date: Sep 2010
  • Location: Santee
  • *
  • Jr. Member
  • **
  • Posts: 62
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #4 on: March 02, 2011, 04:21:32 PM »
Thanks for the helpful information. I thought i needed a seal. That was exactly  what i was looking for On CPPerformance. Thanks again.  :beer: :beer:

Your Mom

  • Join Date: Feb 2007
  • Location: san diego
  • *
  • Macho Member
  • ******
  • Posts: 1,784
  • Karma: +20/-0
    • View Profile
    • Made in the Shade
  • Liked:
  • Likes Given: 64
« Reply #5 on: March 02, 2011, 06:32:56 PM »
I used a an fitting that I cut right down the center. I had to do this as the fitting would not go over the end. I then installed blue hose and end clamp fittings to keep cable from moving. This is a very cool look and protects the cable from rott.




Horizonjet

  • Join Date: Jul 2010
  • Location: Phoenix
  • *
  • Hero Member
  • *****
  • Posts: 880
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 110
« Reply #6 on: March 02, 2011, 09:05:31 PM »
I used a an fitting that I cut right down the center. I had to do this as the fitting would not go over the end. I then installed blue hose and end clamp fittings to keep cable from moving. This is a very cool look and protects the cable from rott.



The blue hose is a cool look.   :thumbup:
72 Horizon BBC

Legal Chemistry

  • Join Date: May 2007
  • Location: San Diego
  • *
  • Sr. Member
  • ****
  • Posts: 282
  • Karma: +2/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #7 on: March 03, 2011, 09:52:22 AM »
Here's what I had


sandeggo

  • Join Date: Feb 2008
  • Location: Vista, big river
  • *
  • Hero Member
  • *****
  • Posts: 827
  • Karma: +7/-0
    • View Profile
  • Liked:
  • Likes Given: 7
« Reply #8 on: March 03, 2011, 09:58:33 AM »

drilled and tapped right next to the berk B.
Use one of these to seal it. pick the one that fits the cable
http://www.grainger.com/Grainger/strain-relief-connector/strain-relief/electrical/ecatalog/N-8fq

IRRebel

  • Join Date: Dec 2008
  • Location: Casa Grande, Arizona
  • *
  • Informative Member
  • *******
  • Posts: 5,635
  • Karma: +16/-0
    • View Profile
  • Liked:
  • Likes Given: 12
« Reply #9 on: March 03, 2011, 11:58:19 AM »

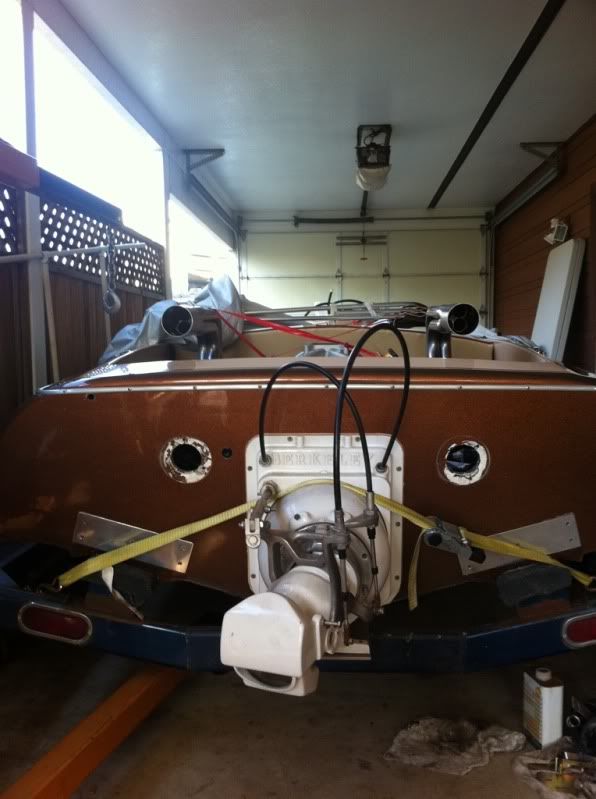

I ran mine on Moo identical to Nordies. But on Pickle, was easier, and more correct, to not fock up the hull by running it over the transom. Actually worked out and looks cool that way. Can't seem to find a pic of that though........Tom at JBP asked me to do it that way and sent me a cable long enough to do it.  ;)

Ray
"Life's journey is not to arrive at the grave safely in a well preserved body, but rather to skid in sideways totally worn out shouting 'Holy Shit what a ride!"---Crewcheif22 AKA Keith

mash on it

  • Join Date: Sep 2008
  • Location: BHC- Beyond Hell Crew & Williams
  • *
  • Macho Member
  • ******
  • Posts: 1,875
  • Karma: +26/-0
  • At the Saloon 'til sun up
    • View Profile
  • Liked:
  • Likes Given: 421
« Reply #10 on: March 03, 2011, 01:10:52 PM »
X2 on "Over the Transom", less bends, less holes, easier cable movement/operation.

Daniel
Mash on it
CJ/RR 212...under construction  "Pistol Annie"

Boats N Hoes

  • Join Date: Sep 2010
  • Location: Santee
  • *
  • Jr. Member
  • **
  • Posts: 62
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #11 on: March 03, 2011, 03:17:10 PM »
Thanks for all the ideas for routing my place diverter cable. ;)

sandeggo

  • Join Date: Feb 2008
  • Location: Vista, big river
  • *
  • Hero Member
  • *****
  • Posts: 827
  • Karma: +7/-0
    • View Profile
  • Liked:
  • Likes Given: 7
« Reply #12 on: March 03, 2011, 03:20:38 PM »
my boat is tiny so i had to mount the handle about right below my right knee. The cable goes along the seat frame, through the seat drains, under the motor  and out the transom adapter. pretty much a straight shot.

IRRebel

  • Join Date: Dec 2008
  • Location: Casa Grande, Arizona
  • *
  • Informative Member
  • *******
  • Posts: 5,635
  • Karma: +16/-0
    • View Profile
  • Liked:
  • Likes Given: 12
« Reply #13 on: March 03, 2011, 09:35:45 PM »
X2 on "Over the Transom", less bends, less holes, easier cable movement/operation.

Daniel
Mash on it

Somebodies gotta have a picture of it somewhere. Really is sweet how it worked out on that boat.  Too bad I never took a pic of it.........

Ray
"Life's journey is not to arrive at the grave safely in a well preserved body, but rather to skid in sideways totally worn out shouting 'Holy Shit what a ride!"---Crewcheif22 AKA Keith

OC2Vegas

  • Join Date: Apr 2007
  • Location: Laguna Niguel, Ca
  • *
  • Informative Member
  • *******
  • Posts: 3,311
  • Karma: +12/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #14 on: March 03, 2011, 10:34:33 PM »
Somebodies gotta have a picture of it somewhere. Really is sweet how it worked out on that boat.  Too bad I never took a pic of it.........

Ray

It was probably on one of the 4 phones that went in the lake/river!  ;)
1979 Sanger Superjet
BBC, 12JG

IRRebel

  • Join Date: Dec 2008
  • Location: Casa Grande, Arizona
  • *
  • Informative Member
  • *******
  • Posts: 5,635
  • Karma: +16/-0
    • View Profile
  • Liked:
  • Likes Given: 12
« Reply #15 on: March 15, 2011, 01:04:38 PM »
It was probably on one of the 4 phones that went in the lake/river!  ;)

We refer to those incidents as "wet testing the Blackberry"..........but dunno if they work or not honestly, they're still down there......... :screwy:
