So Here i am again. tearing into my SWTD once again.
Last summer i ran it really hard knowing the stringers were soft.(bad idea on my part)
I could feel the boat kinda twist out of the hull when i punched it. Plus i could move them from side to side pretty good. AND found cracks along the stringers. So after tom Papp i decided to get to work and replace them.
Also i figured wile i was at it i would put a low pro and do a few other things i couldn't last spring.
Big thanks to TRG, todd for helping me out with this project.
Here we go.

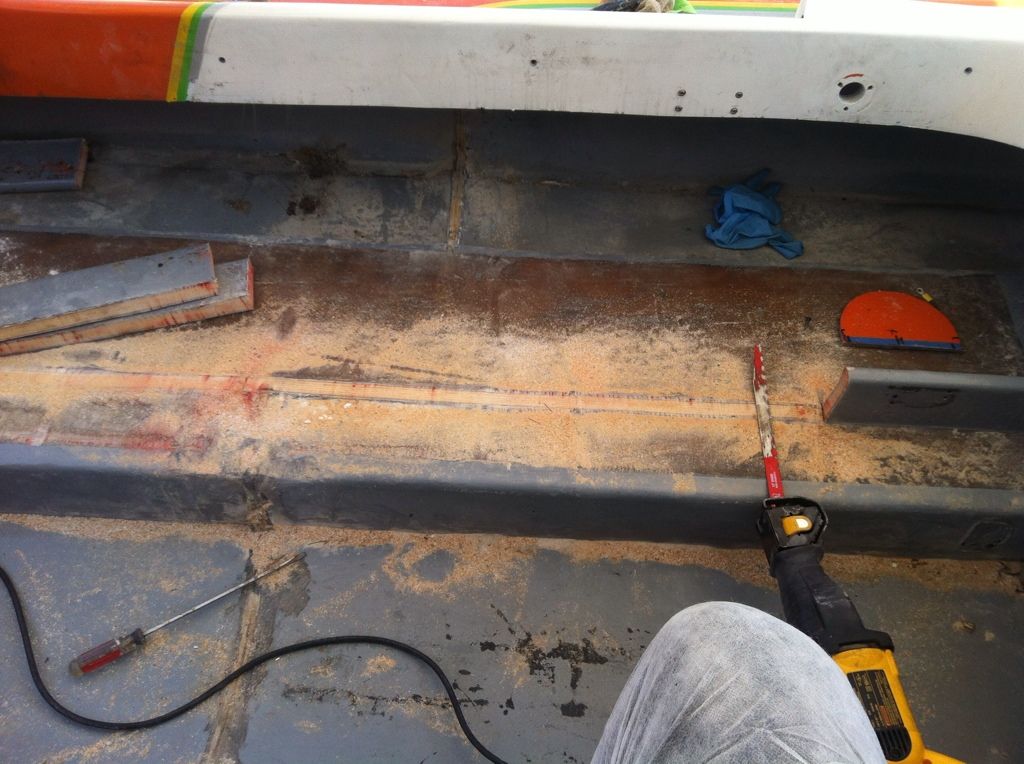

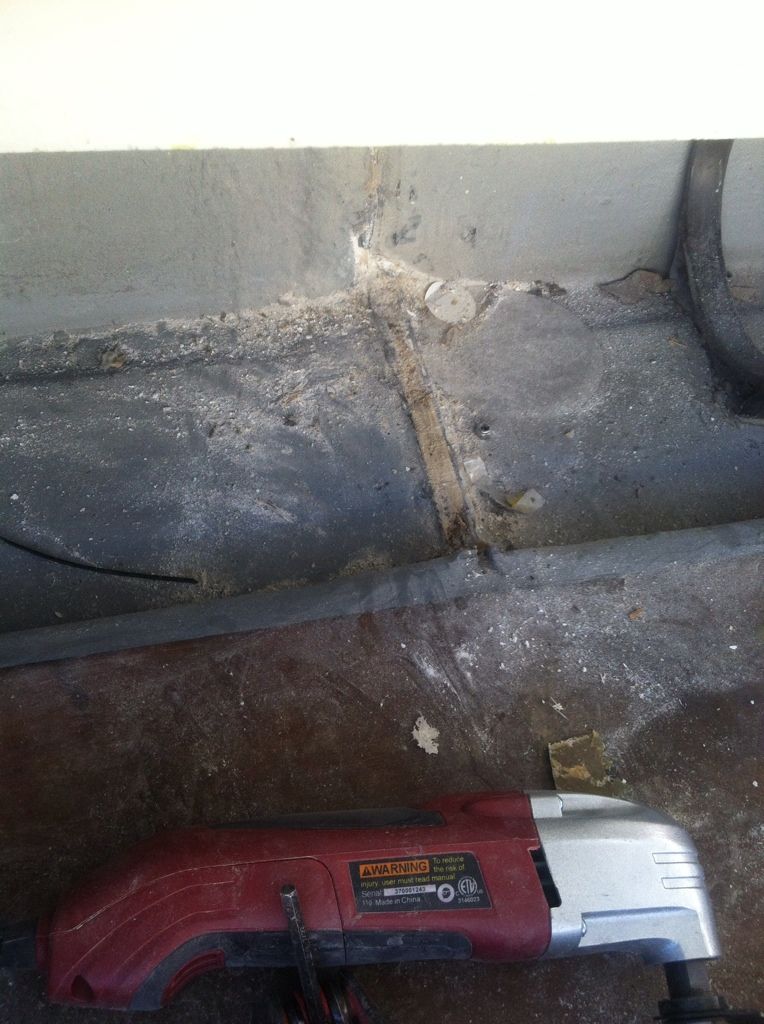

After striping the boat down i took a skill saw to the stringers and bulkheads.

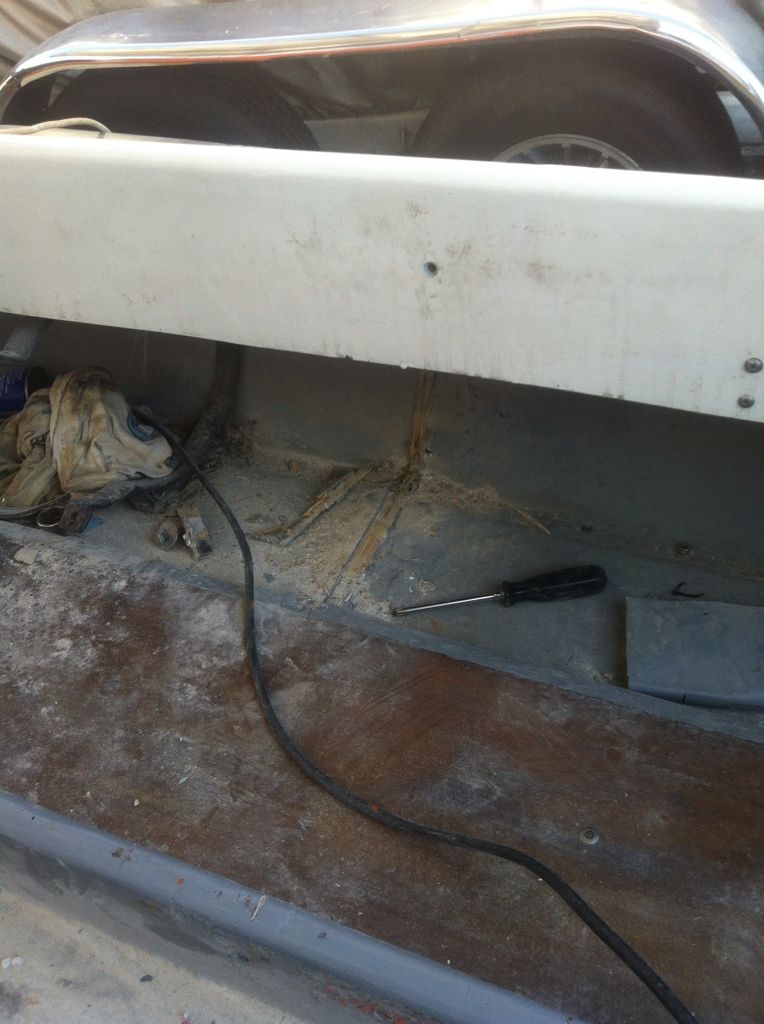

Figured this had something to do with the twisting and what not

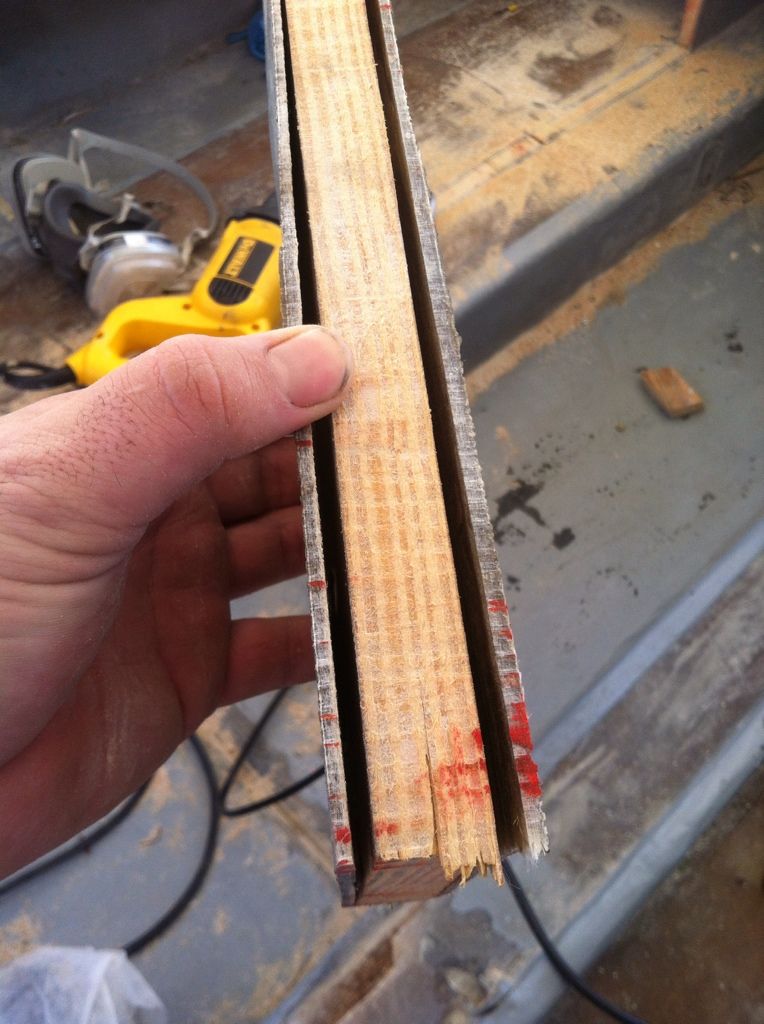

Heres what caused it

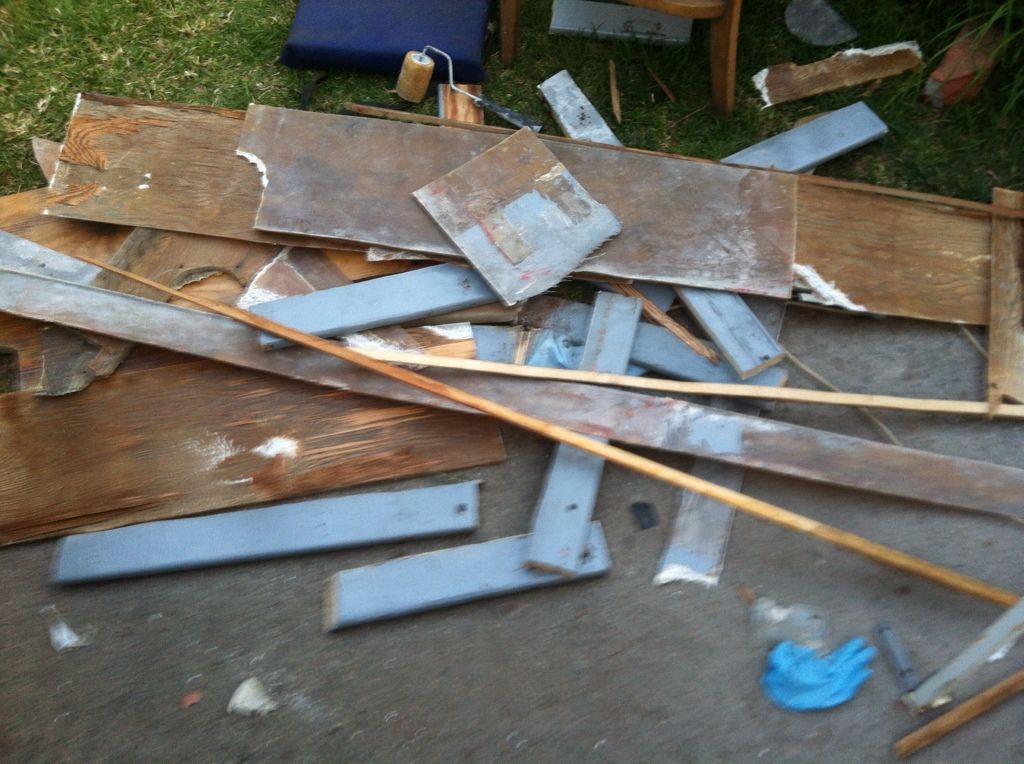

35 year old firewood and glass

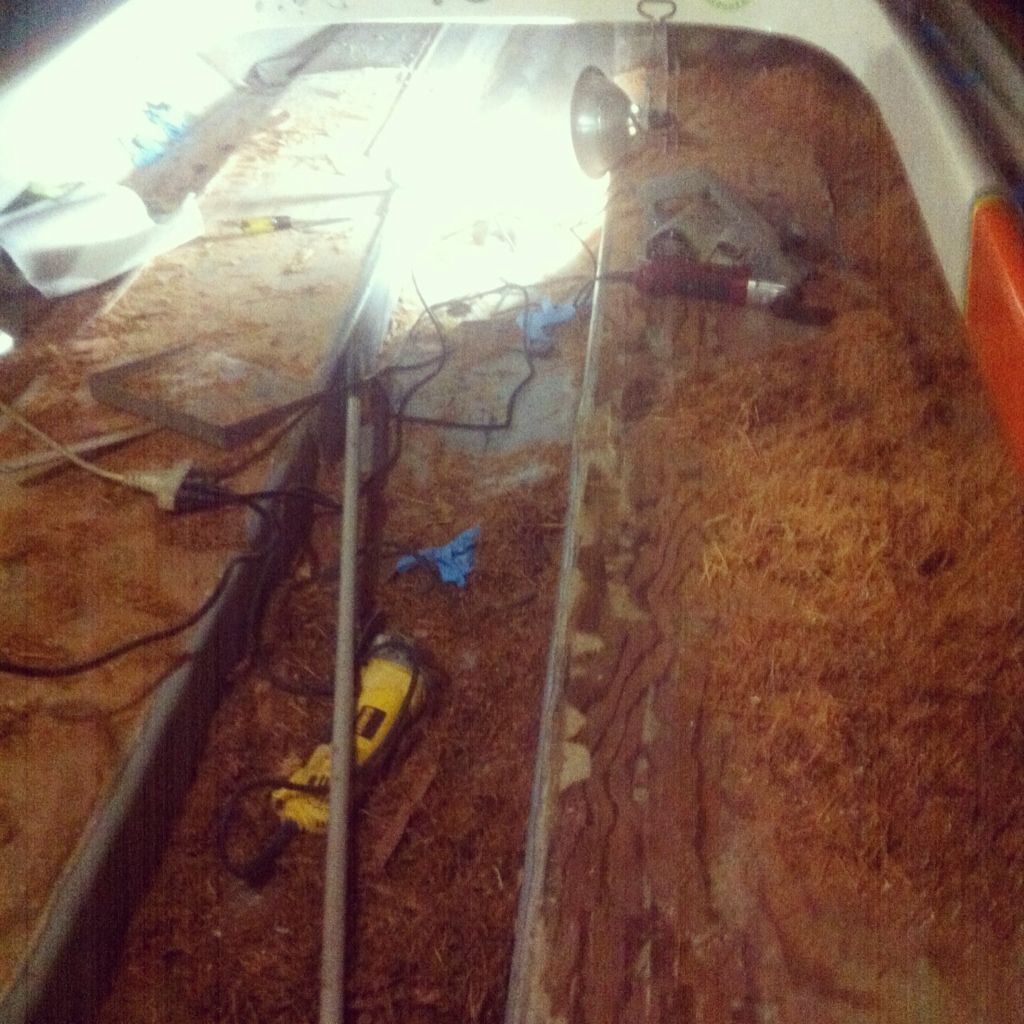

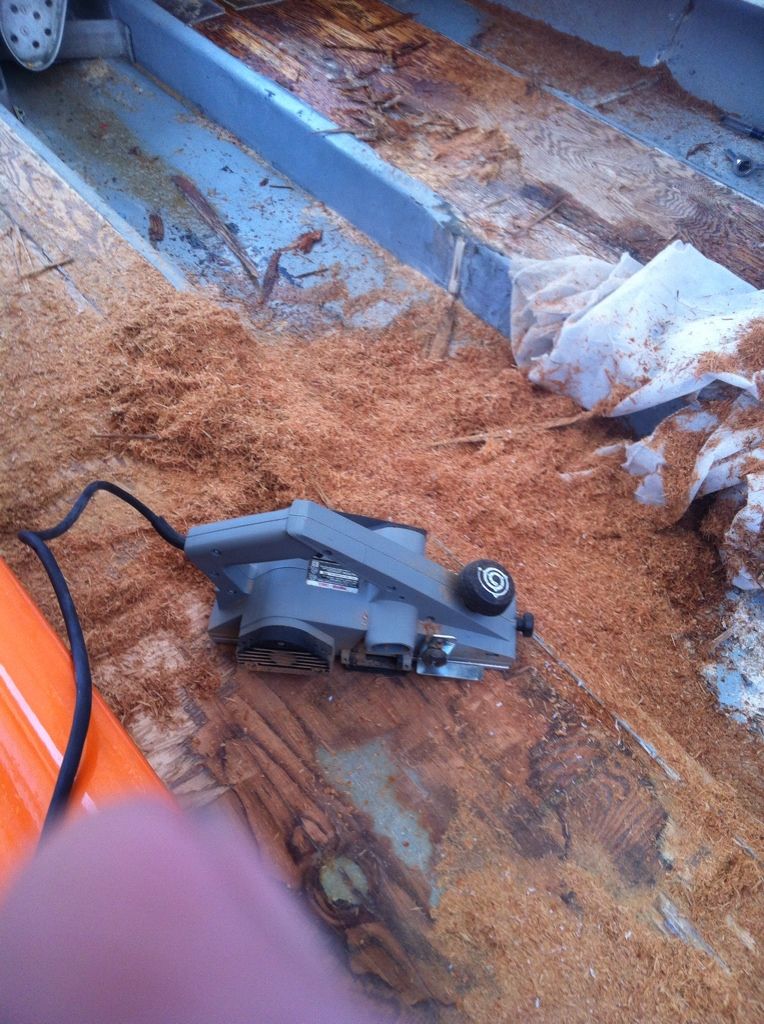

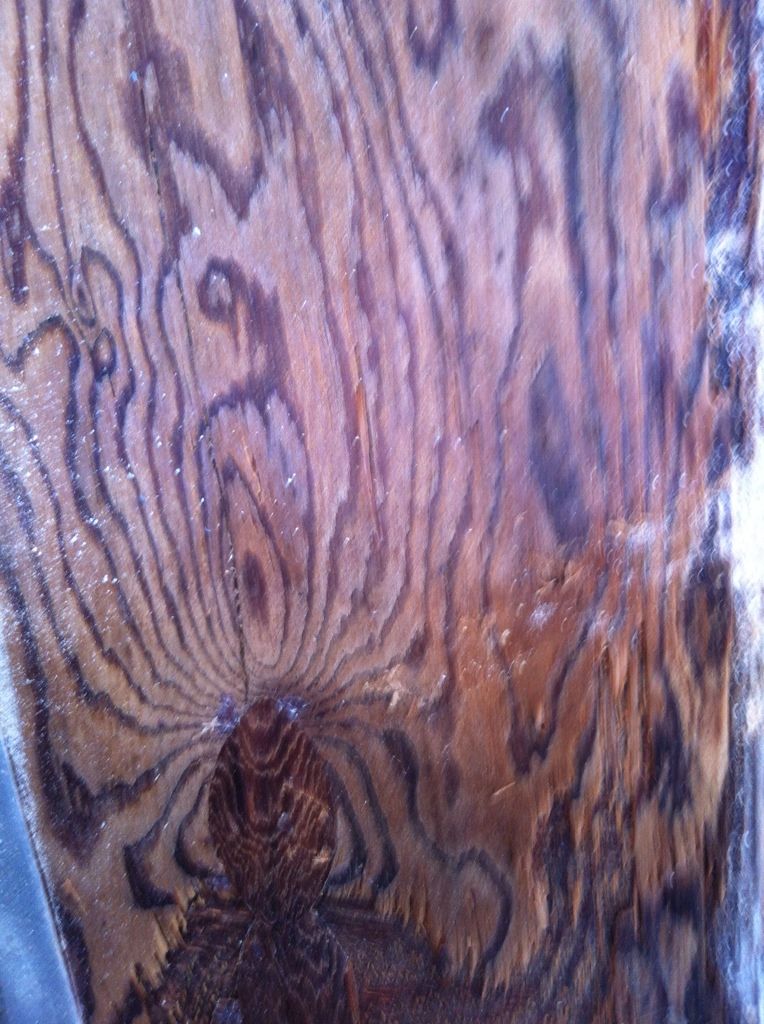

Took a power planer to the wood and blocked it down with 36 grit


  • Boat #1: Southwind Tunnel Dragster 19
  • Boat #2: DiMarco18 V-Bottom


Null


jyeager

  • Join Date: Feb 2011
  • Location: West Covina
  • *
  • Member
  • Macho Member
  • ******
  • Posts: 2,003
  • Karma: +62/-0
    • View Profile
  • Liked:
  • Likes Given: 241
« Reply #1 on: April 13, 2013, 03:46:35 PM »
Got the new balsa and stringers mocked.


I scratched up the floor with 36 gritt again and layed down a layer of 2 oz CSM on either side. Then layed the balsa on it and put resin on top.
Dont do that hahah. found that out later i should have done that after it cured. But then i put wax paper down on top and put weight down on the balsa.





After i made a quick jig to keep the stringers in place. The stringers i am using are Kiln dried douglas fur 1X4s about 14 1/2 long.
once i squared up everything and got it where i wanted, sanded the floor down with 36 where i was going to put glass. then I wetted out some 2 oz strips and set them down on the wet glass. Then put as much weight as i could on it.









  • Boat #1: Southwind Tunnel Dragster 19
  • Boat #2: DiMarco18 V-Bottom

jyeager

  • Join Date: Feb 2011
  • Location: West Covina
  • *
  • Member
  • Macho Member
  • ******
  • Posts: 2,003
  • Karma: +62/-0
    • View Profile
  • Liked:
  • Likes Given: 241
« Reply #2 on: April 13, 2013, 03:52:12 PM »
Well then the fun part started. Glass. I used 4 layers of 2 oz CSM for this

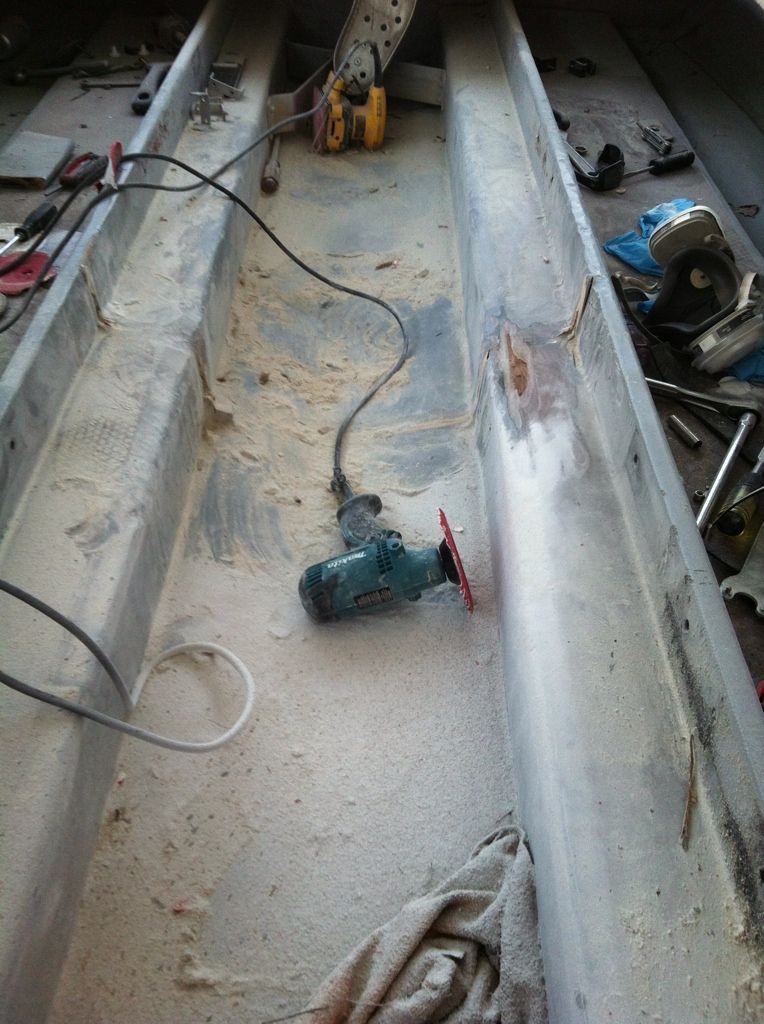

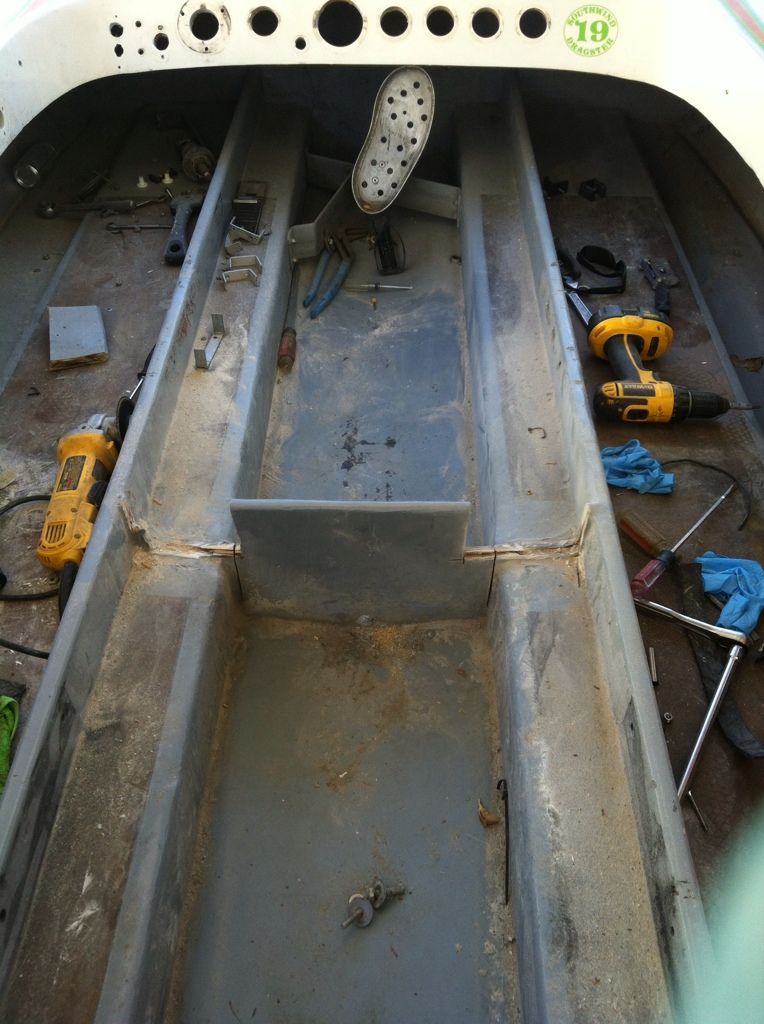

After all that work I got the new front bulkhead in and primered and blocked down the stringers. Also got the floors nice and flat and shiny






  • Boat #1: Southwind Tunnel Dragster 19
  • Boat #2: DiMarco18 V-Bottom

JMS-1

  • Join Date: Mar 2008
  • Location: alpine, ca
  • *
  • Sr. Member
  • ****
  • Posts: 272
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 3
« Reply #3 on: April 13, 2013, 09:32:45 PM »
 :thumbup: keep up the good work, it's getting there. Seeing other people doing glass work right know helps keep me moving along on my floor, it sucks but i'm not alone...
  • Boat #1: 79 Miller

jyeager

  • Join Date: Feb 2011
  • Location: West Covina
  • *
  • Member
  • Macho Member
  • ******
  • Posts: 2,003
  • Karma: +62/-0
    • View Profile
  • Liked:
  • Likes Given: 241
« Reply #4 on: April 14, 2013, 12:55:32 AM »
:thumbup: keep up the good work, it's getting there. Seeing other people doing glass work right know helps keep me moving along on my floor, it sucks but i'm not alone...
Thanks bud. Glass work sucks, but it's not that bad. Keep going. You'll be stoked when you're done and you can say you did it your self.
  • Boat #1: Southwind Tunnel Dragster 19
  • Boat #2: DiMarco18 V-Bottom

jyeager

  • Join Date: Feb 2011
  • Location: West Covina
  • *
  • Member
  • Macho Member
  • ******
  • Posts: 2,003
  • Karma: +62/-0
    • View Profile
  • Liked:
  • Likes Given: 241
« Reply #5 on: April 28, 2013, 11:43:11 AM »
Well i can call my nightmare over. flow coated and cleared with about 5 coats of prestec super clear. Is not perfect but, with all the rigging and other things in there. you wont see it. Thanks to Sandeggo for the gelcoat. Big thanks to TRG Todd for helping me and answering my stupid questions.











« Last Edit: April 30, 2013, 04:40:37 PM by jyeager »
  • Boat #1: Southwind Tunnel Dragster 19
  • Boat #2: DiMarco18 V-Bottom

76NORDIC

  • Join Date: Sep 2007
  • Location: The OC / Brea McIntyre Park
  • *
  • SCJB Plus Member
  • Informative Member
  • ********
  • Posts: 3,508
  • Karma: +23/-0
    • View Profile
  • Liked:
  • Likes Given: 143
« Reply #6 on: April 28, 2013, 11:49:37 AM »
Dude nice work, looks bitchen :thumbup: :thumbup:
  • Boat #1: 76 Nordic BBF 460 Jet
The definition of insanity: Doing the same thing over and over again, and expecting different results.....Einstein

I refuse to call people an ass anymore. It insults hard working donkeys worldwide!

j. mayanard

  • Join Date: Nov 2012
  • Location: south east missouri
  • *
  • Jr. Member
  • **
  • Posts: 95
  • Karma: +0/-0
  • Registered User
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #7 on: April 28, 2013, 09:02:33 PM »
 Very Nice.

Sent from my SCH-I535 using SoCalJetBoats mobile app

Jet Boats aint for everybody!!

berkbryan

  • Join Date: Sep 2011
  • Location: hesperia
  • *
  • Hero Member
  • *****
  • Posts: 706
  • Karma: +3/-0
    • View Profile
  • Liked:
  • Likes Given: 9
« Reply #8 on: April 28, 2013, 09:10:44 PM »
Nice good job

Sent from my SGH-T999 using SoCalJetBoats mobile app


Brad @ SCJB

  • Join Date: Oct 2006
  • Location: Las Vegas, NV
  • *
  • Administrator
  • Informative Member
  • *******
  • Posts: 12,288
  • Karma: +251/-0
  • HNIC
    • View Profile
    • SoCal Jet Boats.com
  • Liked:
  • Likes Given: 116
« Reply #9 on: April 28, 2013, 11:16:02 PM »
Great thread!

Sent from my DROID BIONIC using SoCalJetBoats mobile app

  • Boat #1: 1978 Liberty
  • Boat #2: 1982 Eliminator Sprint

sandeggo

  • Join Date: Feb 2008
  • Location: Vista, big river
  • *
  • Hero Member
  • *****
  • Posts: 827
  • Karma: +7/-0
    • View Profile
  • Liked:
  • Likes Given: 7
« Reply #10 on: April 29, 2013, 04:48:49 AM »
Nice job jake, don't know if I woulda done it. That a lot of work

SoCalPSD

  • Join Date: Aug 2011
  • Location: Moreno Valley
  • *
  • Macho Member
  • ******
  • Posts: 1,960
  • Karma: +4/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #11 on: April 29, 2013, 07:00:50 AM »
That came out great. Good job man.

In my best "grandad" voice with a cigarette hanging out of my mouth....  "if a day goes by and you learn nothing, I hope like hell you got a lot of sleep".... :thumbup:

muffbro

  • Join Date: Nov 2012
  • Location: North East Mississippi (about an hour South of Memphis)
  • *
  • Hero Member
  • *****
  • Posts: 644
  • Karma: +3/-0
  • Muffbro
    • View Profile
  • Liked:
  • Likes Given: 40
« Reply #12 on: April 29, 2013, 08:25:54 AM »
Sweeeet
