Winter project just got bigger (now with pics)

  • 16 Replies
  • 4247 Views

Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« on: November 23, 2010, 02:14:05 PM »

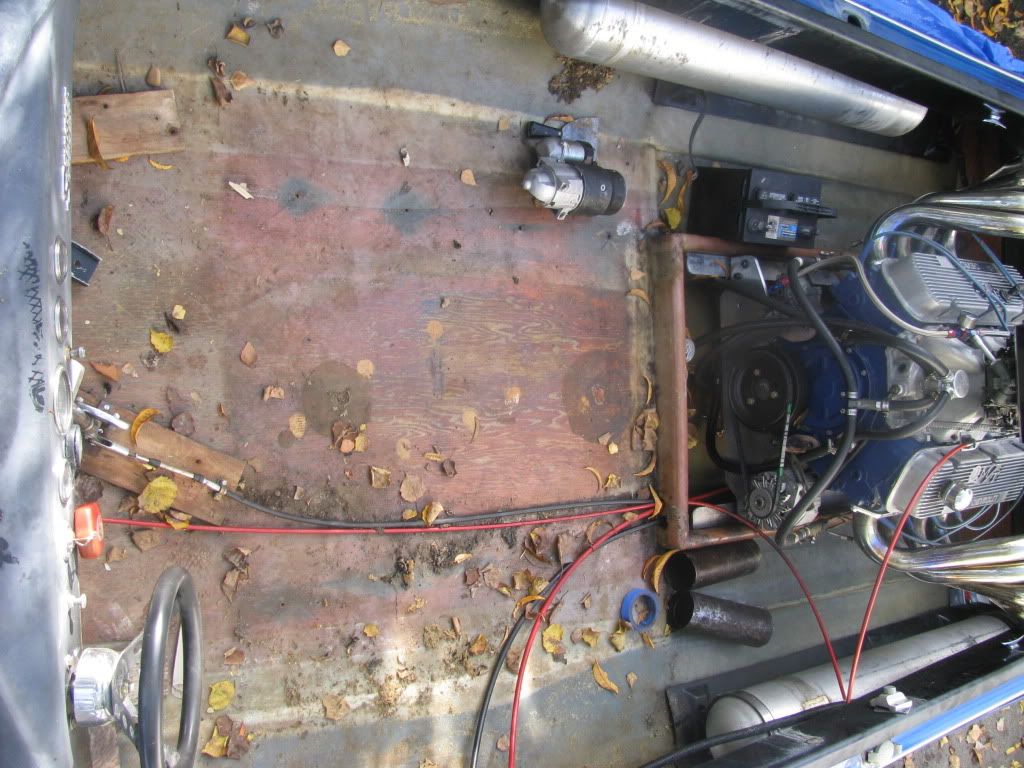

went to storage to get the boat.  Got there and found that my cover and all my straps grew legs and found a new home.  :mad: At least they left my engine cover.  Point being it sat un covered for who knows how long      ( havent been there in 5 weeks).  Its been raining pretty good up here so my interior that I was gonna push through 1 more season is now sitting in a sloppy pile next to the boat.  My carpentry skills are very good (16 years), my upolstery skils...  eh, not so much.  Probably gonna rebuild the front buckets the way they were.  I don't like the layout in the rear so much though.  Two small benches facing each other.  Very inconvienent for anyone over 4' tall.  Any suggestions on an allteranate arangement??  gonna post pics tonight if I have time.  Thanks for readin.

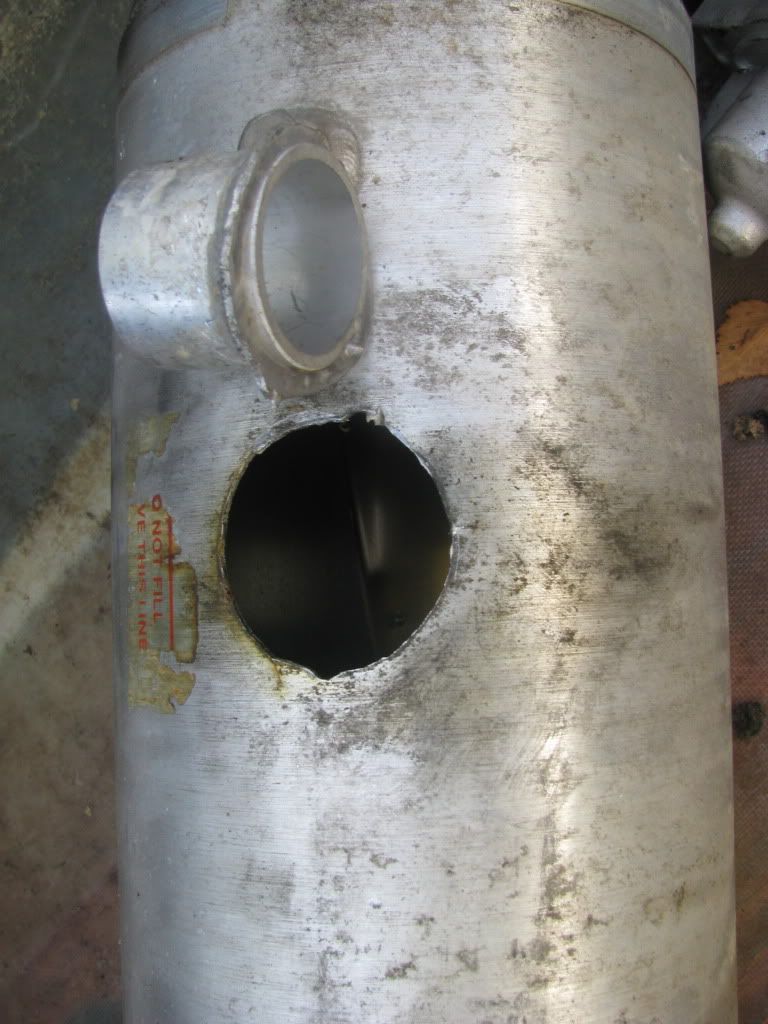

Gotta fix the filler neck, rewire entire boat and redo interior.






BTW if anyone has info on how to get pics from photobucket to here as a thumbnail let me know.  Sorry bout the havin to open each pic individually.
« Last Edit: December 18, 2010, 06:28:00 PM by Brad @ SCJB »

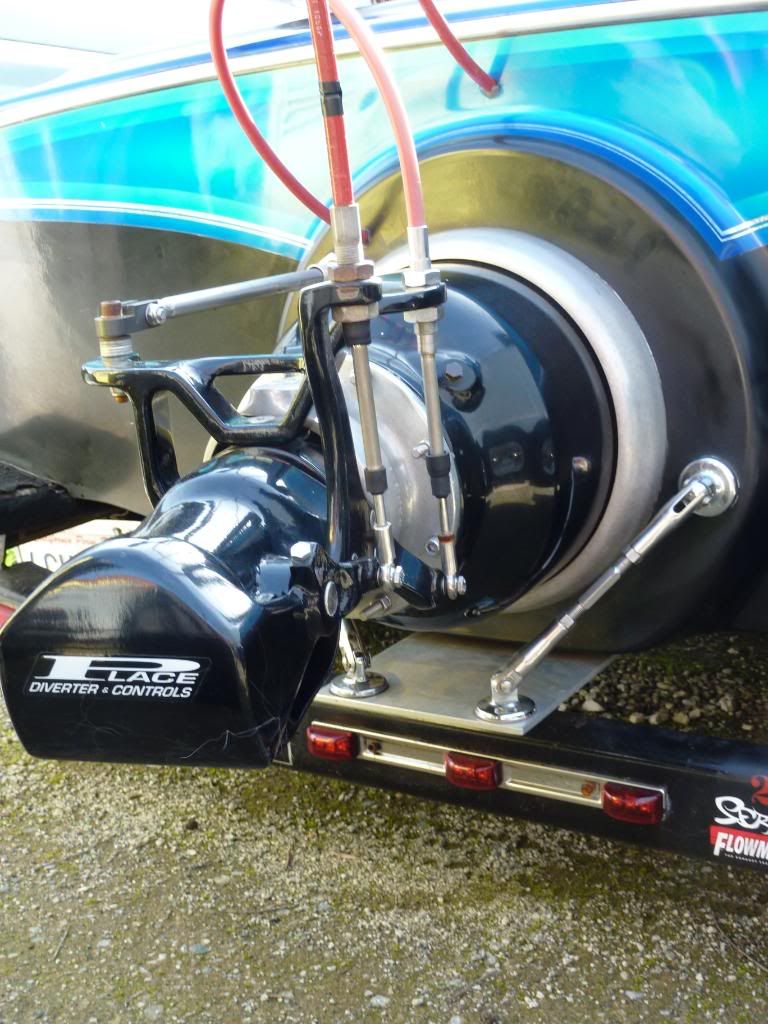

1980 Sanger Superjet  464 BBC  12jg  Place Diverter


Null


Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #1 on: December 12, 2010, 04:54:06 PM »
I have a question for any one who has built thier own seats. I'm very close to being done with the rough construction of my rear bench.  What I don't know is, how much room should i leave between the gunnel and the frame.  I'm sure the upolsterer will need some room to wrap in there but I'm not sure.  I would go ask an upolstery shop but I haven't found one yet.

It is built tight to the gunnels right now.
Thanks,  Brian.
1980 Sanger Superjet  464 BBC  12jg  Place Diverter

HDriderTH

  • Join Date: Nov 2006
  • Location: Las Vegas Nevada
  • *
  • Informative Member
  • *******
  • Posts: 3,525
  • Karma: +12/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #2 on: December 12, 2010, 05:49:02 PM »
I'm doing the wood for my sanger right now. There is only enough room for a few layers of vynel between the wood and the gunwhales, 1/8" or so.

'82 Sanger Bubble deck, Blown 454....V-drive

Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #3 on: December 16, 2010, 04:13:02 PM »

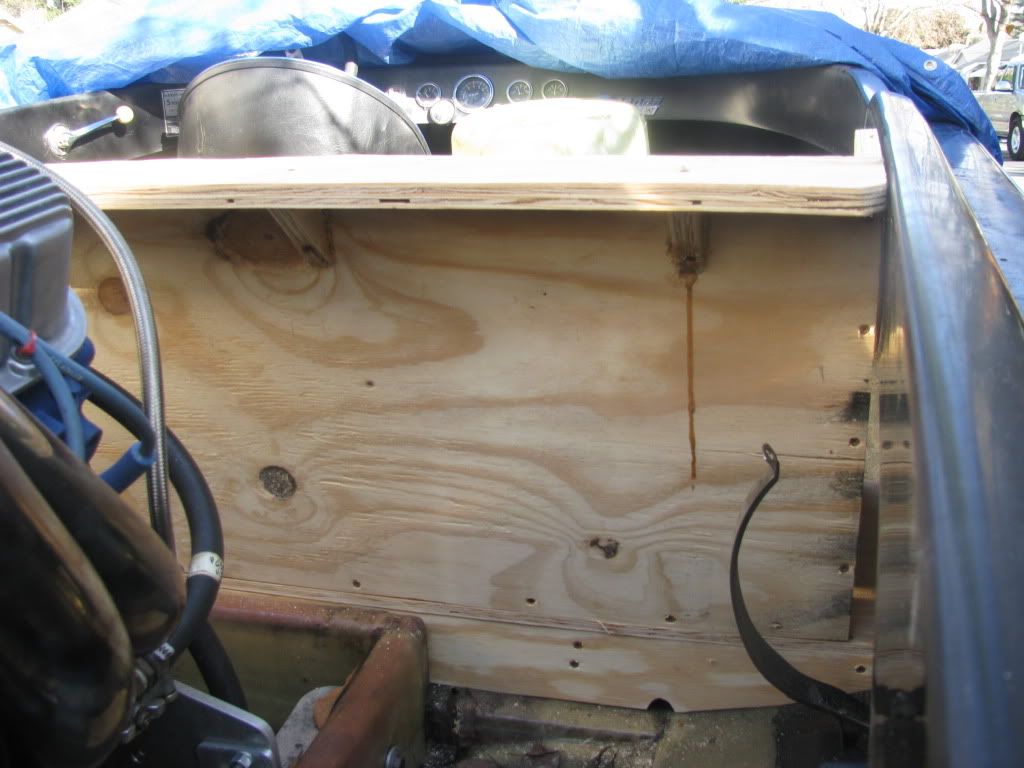

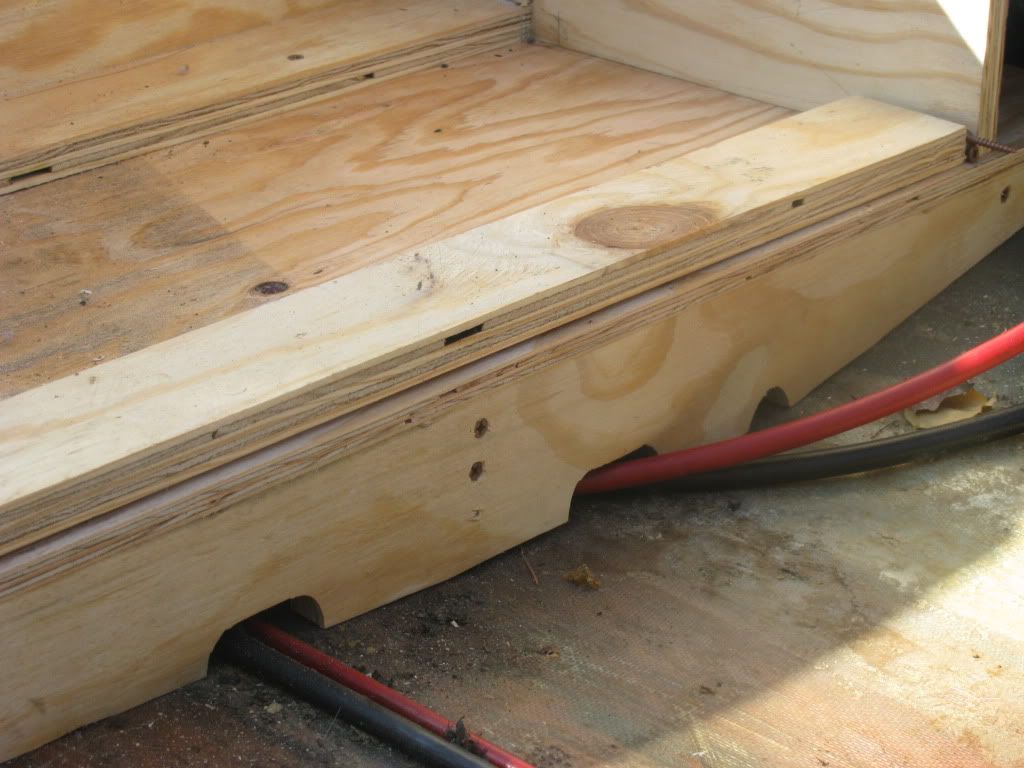

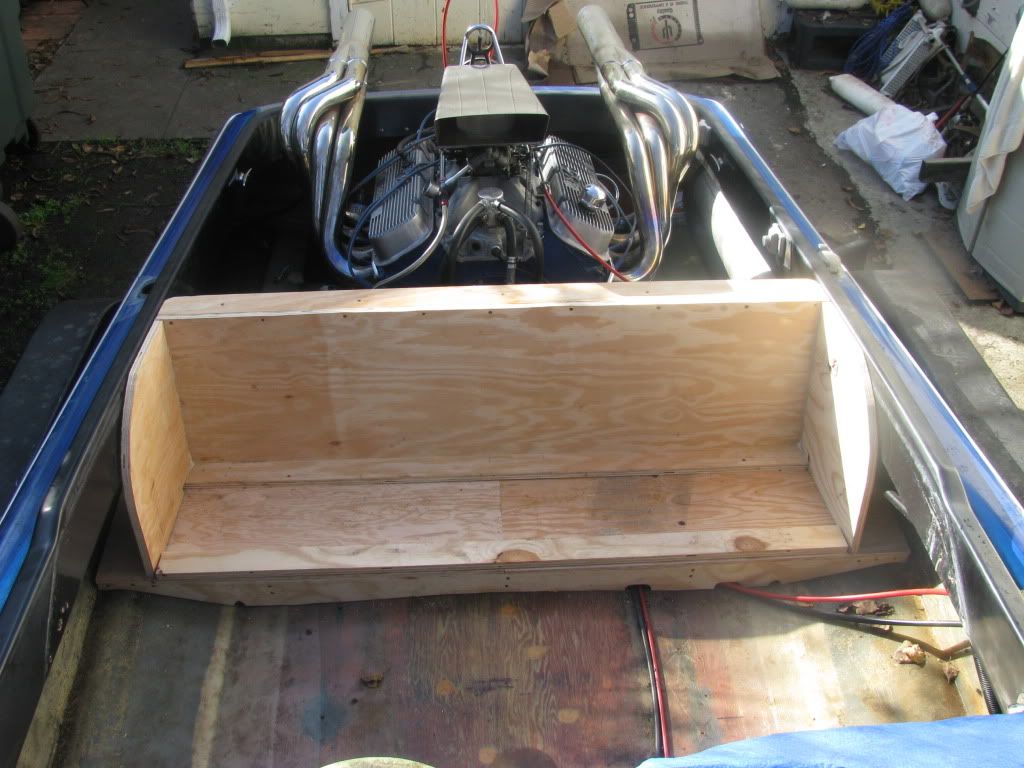

Finaly some progress!!   1st attempt at the whole interior thing.  If any one sees any potential problems or something that is totaly Efed up, let me know.
Now on to the buckets.  First bucket is in the clamps drying right now, fingers crossed on that.











1980 Sanger Superjet  464 BBC  12jg  Place Diverter

76NORDIC

  • Join Date: Sep 2007
  • Location: The OC / Brea McIntyre Park
  • *
  • SCJB Plus Member
  • Informative Member
  • ********
  • Posts: 3,508
  • Karma: +23/-0
    • View Profile
  • Liked:
  • Likes Given: 143
« Reply #4 on: December 16, 2010, 06:17:54 PM »
Very nice work :thumbup: :thumbup:  Just make sure you seal the crap outta it before you cover it
  • Boat #1: 76 Nordic BBF 460 Jet
The definition of insanity: Doing the same thing over and over again, and expecting different results.....Einstein

I refuse to call people an ass anymore. It insults hard working donkeys worldwide!

76NORDIC

  • Join Date: Sep 2007
  • Location: The OC / Brea McIntyre Park
  • *
  • SCJB Plus Member
  • Informative Member
  • ********
  • Posts: 3,508
  • Karma: +23/-0
    • View Profile
  • Liked:
  • Likes Given: 143
« Reply #5 on: December 16, 2010, 06:20:02 PM »
Forgot to add.... some drain holes also ;)
  • Boat #1: 76 Nordic BBF 460 Jet
The definition of insanity: Doing the same thing over and over again, and expecting different results.....Einstein

I refuse to call people an ass anymore. It insults hard working donkeys worldwide!

GreatLakes Jet

  • Join Date: Jun 2010
  • Location: St. Johns, MI
  • *
  • Sr. Member
  • ****
  • Posts: 311
  • Karma: +1/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #6 on: December 16, 2010, 08:07:48 PM »
looks good keep the pic's coming







                                                rusty
  • Boat #1: 77 nordic 19ft
  • Boat #2: 84 youngblood 18 tunnel

Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #7 on: December 17, 2010, 01:12:36 PM »
Pics of the front seat construction...

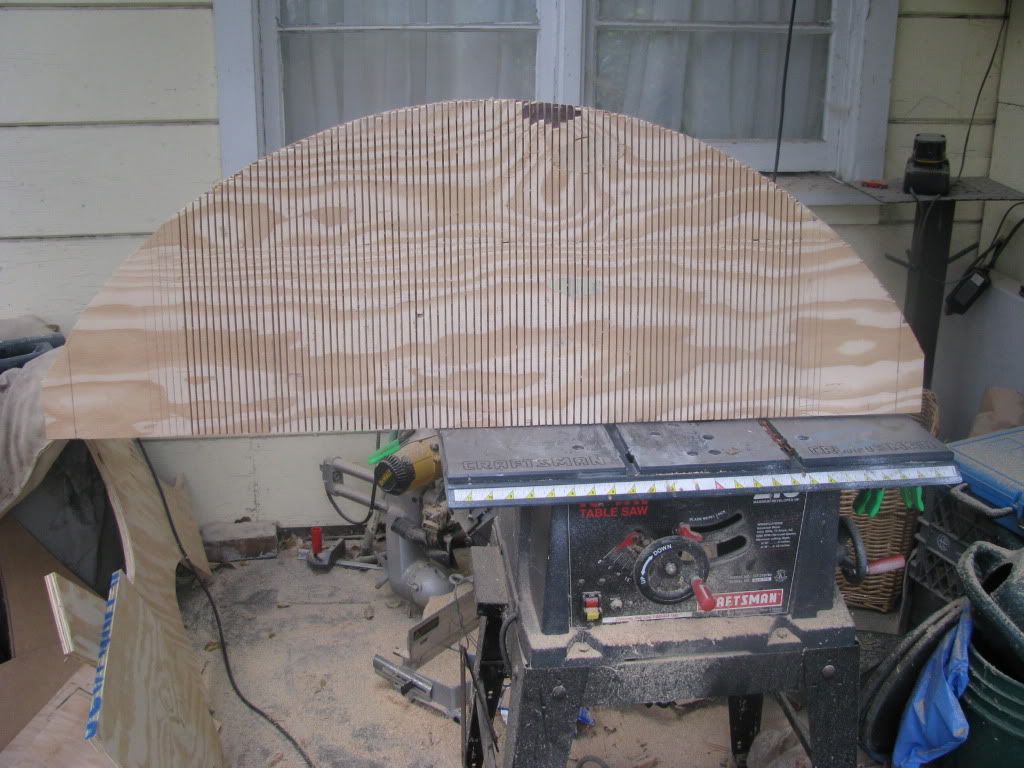

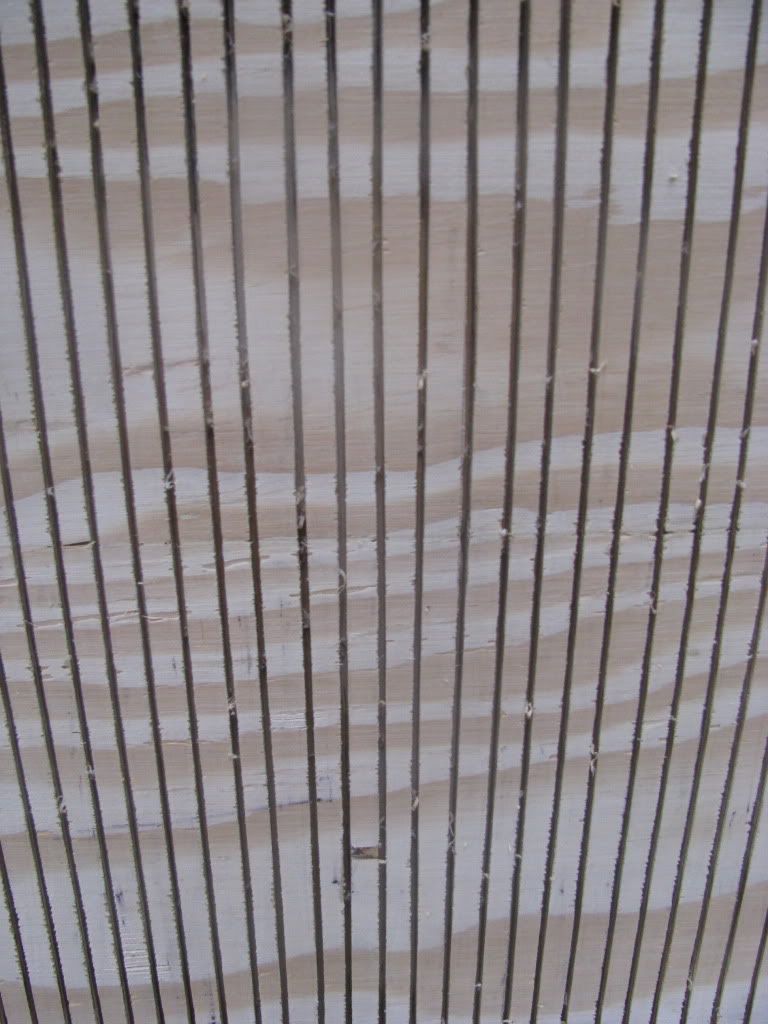

88 kerfs 3/8" oc.  I used 3/8 5ply, the kerf goes half way through the fourth ply, found this to be the best for strenght and smoothness through the arc.

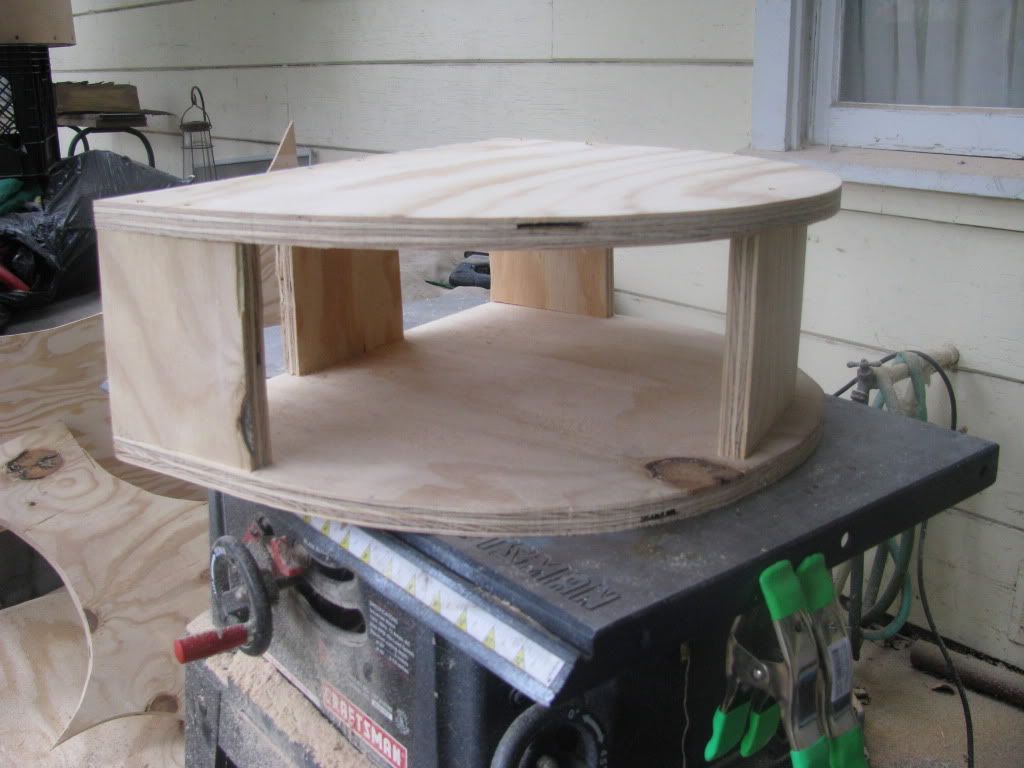

I made some extra base cutous and screwed them together.  This gives something to to keep the arc nice and symetrical.  It is temporarily screwed to the upper part of the form.



Soaked it in H2o for a while. Didn't take very long, as only the outter 1.5 plys had to soak.  Bout half an hour.  Clamped it for about two hours to let the shape set a little.

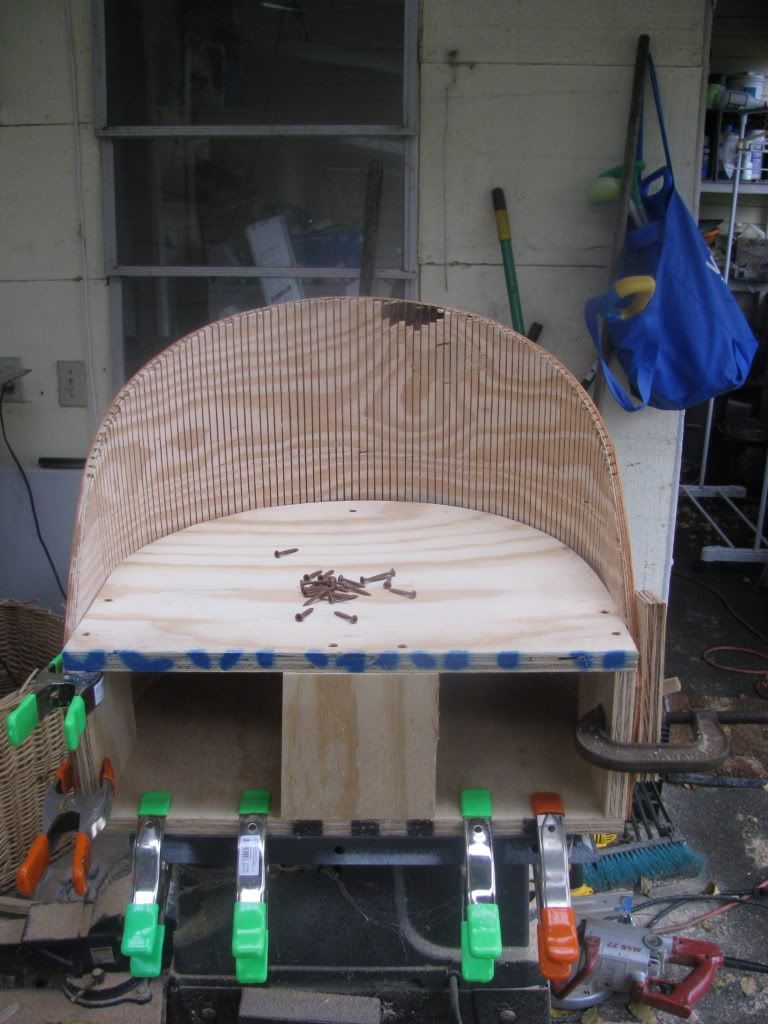

Glued, screwed and clamped like a mofo.  It was a bit of a wrestling match by myself, but for once I took my time and got it pretty dam perfect.

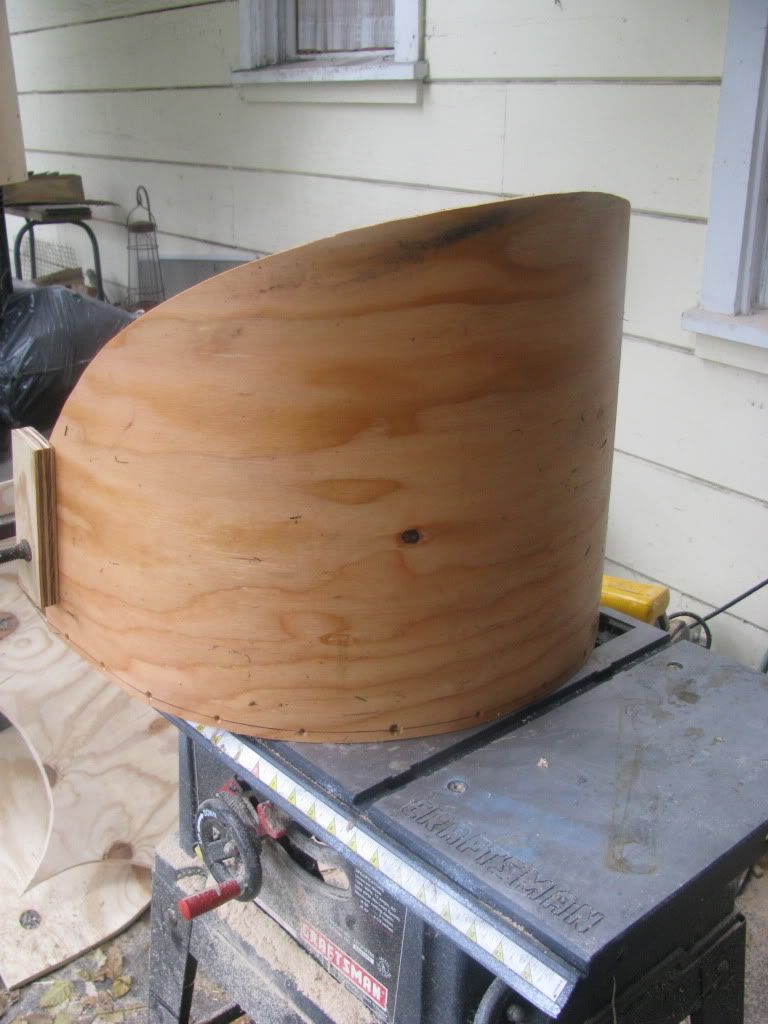

Here it is, all done and curing.

1980 Sanger Superjet  464 BBC  12jg  Place Diverter

GreatLakes Jet

  • Join Date: Jun 2010
  • Location: St. Johns, MI
  • *
  • Sr. Member
  • ****
  • Posts: 311
  • Karma: +1/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #8 on: December 17, 2010, 07:04:55 PM »
wow doing a really nice job only wish live closer then i would come over to see this in person like i said keep pic's rolling






                                                        rusty
  • Boat #1: 77 nordic 19ft
  • Boat #2: 84 youngblood 18 tunnel

Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #9 on: December 18, 2010, 06:00:48 PM »

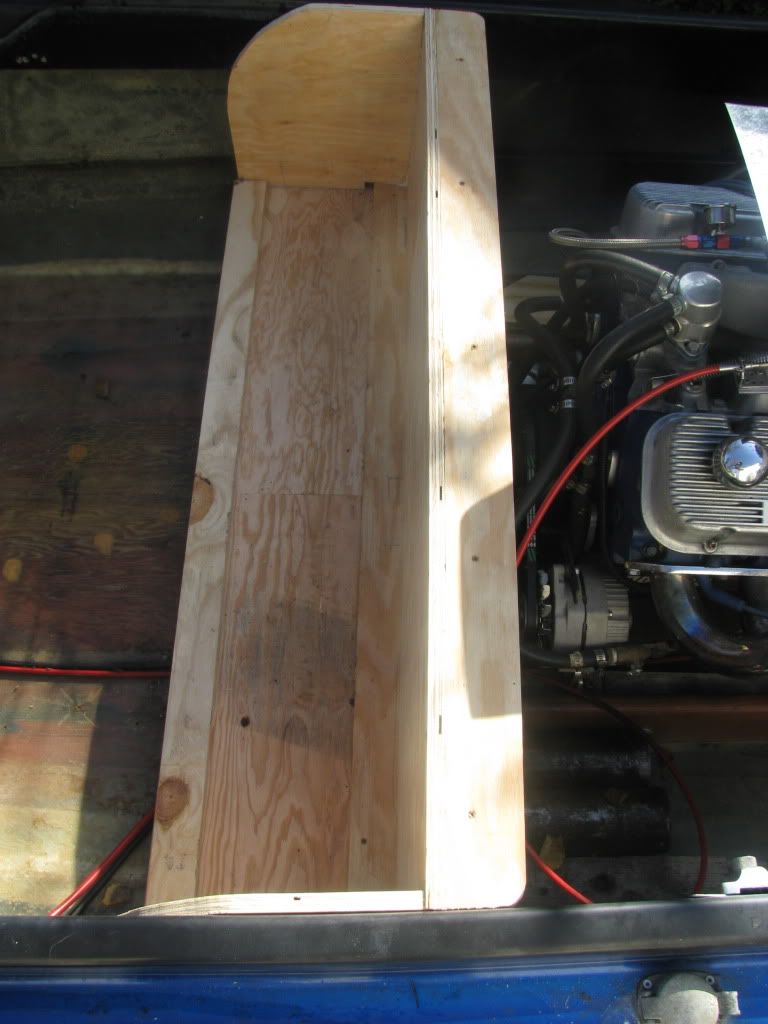

Construction is done on all three seats.  I'm gonna sand em down tommorow and seal em up..  Not sure what to use to seal the wood??  Any suggestions?  I've read some guys use FG resin,  but that seams like a big headache for the upolstery guy (trying to nail/staple through it).
1980 Sanger Superjet  464 BBC  12jg  Place Diverter

76 Bonneville

  • Join Date: Oct 2007
  • Location: Valley Center
  • *
  • Macho Member
  • ******
  • Posts: 1,832
  • Karma: +25/-0
    • View Profile
  • Liked:
  • Likes Given: 28
« Reply #10 on: December 18, 2010, 06:12:05 PM »
Resin is not a problem for the upholsters, just dont get crazy with the glass.

Legal Chemistry

  • Join Date: May 2007
  • Location: San Diego
  • *
  • Sr. Member
  • ****
  • Posts: 282
  • Karma: +2/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #11 on: December 19, 2010, 07:18:44 PM »
Did you give yourself any access to the space below the seat cushions?  Either for storage or to allow to air out?

Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #12 on: February 22, 2011, 02:53:29 PM »

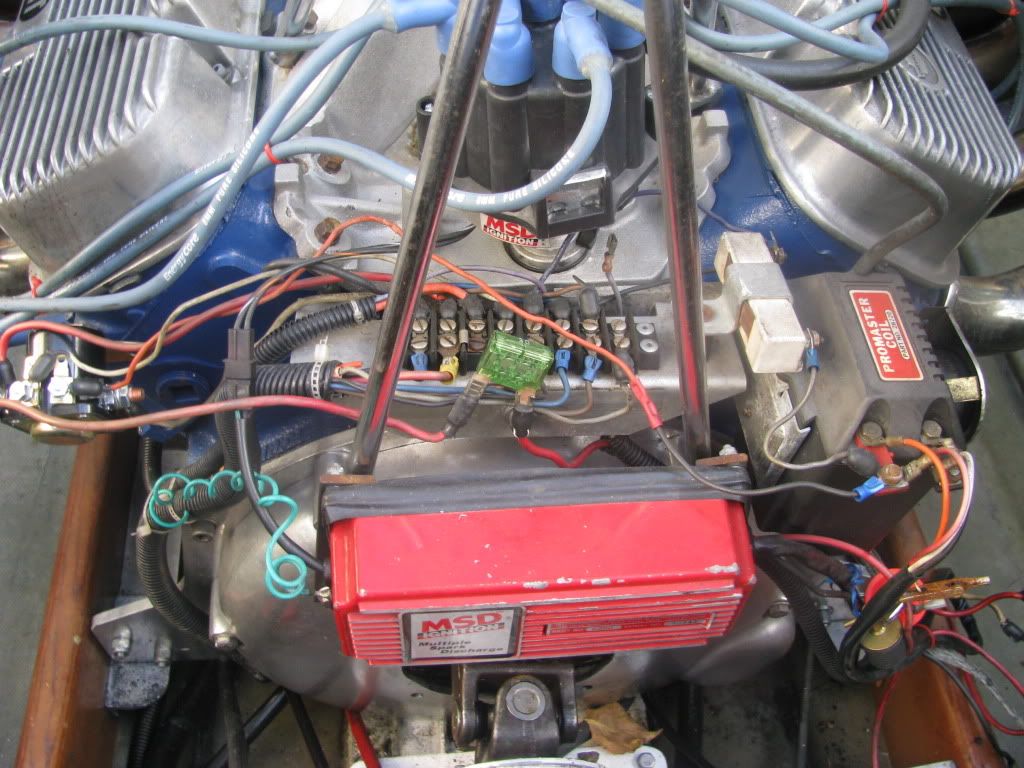

Got a break from the rain.  I buttoned up the electrical (Thanks Glenn) and gave it a quick fire up for a lil extra motivation to finish.  Carpet, upolstery and a lot of cleaning and shes ready.

1980 Sanger Superjet  464 BBC  12jg  Place Diverter

77GT

  • Join Date: Nov 2010
  • Location: Alabama
  • *
  • Full Member
  • ***
  • Posts: 171
  • Karma: +1/-0
    • View Profile
  • Liked:
  • Likes Given: 1
« Reply #13 on: February 22, 2011, 03:08:45 PM »
I can hardly wait for the time I can fire mine up again.

Looks like your seats are coming right along.
SAM in L.A., thats Lower Alabama
77 GT Boats

Sangersquirt

  • Join Date: Nov 2010
  • Location: Redwood city Ca
  • *
  • Newbie
  • *
  • Posts: 32
  • Karma: +0/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #14 on: February 23, 2011, 04:11:16 PM »
RESULTS!!!  Well some at least....
1980 Sanger Superjet  464 BBC  12jg  Place Diverter

ka0tyk

  • Join Date: Aug 2010
  • Location: huntington beach, ca
  • *
  • Informative Member
  • *******
  • Posts: 3,703
  • Karma: +30/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #15 on: February 23, 2011, 05:27:28 PM »
nice work!  i wish i wouldve thought of the slicing on the seat backs... im sure that made it a HELL of a lot easier than that i did.  ugh.
« Last Edit: February 23, 2011, 05:30:19 PM by ka0tyk »

ka0tyk

  • Join Date: Aug 2010
  • Location: huntington beach, ca
  • *
  • Informative Member
  • *******
  • Posts: 3,703
  • Karma: +30/-0
    • View Profile
  • Liked:
  • Likes Given: 0
« Reply #16 on: February 23, 2011, 05:31:16 PM »
Resin is not a problem for the upholsters, just dont get crazy with the glass.

haha how'd it work where the seat cushions and how tight it is?  it looks like when you'd put some foam backed vinyl that it would rub...
