Fuel sending units
« on: March 07, 2014, 06:29:22 PM »
I've been looking through Amazon at sending units.
Anything I should stay away from?
Anything I should look for?
The tanks I'm putting them in do not have sending units in them.

-beerjet-

  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party
i dont but im all for stuffin shit in her ass to make her go away :-*

ka0tyk

  • Karma: +30/-0
Re: Fuel sending units
« Reply #1 on: March 07, 2014, 07:34:10 PM »
first make sure the ohm ratings match your gauges.  i put tube senders in my tanks, which are a benefit in a marine environment since they use pressure to measure tank level and they're not affected by fuel slosh.

then theres a floater style with the arm thats connected to a resistance style pickup.  since it measures where the float is on the top of the fuel, when the tanks slosh so will your reading.

the tubes cost more, but they're also easy to install.  measure tank, trim 1/8" away from the bottom on the tube.  install, done.

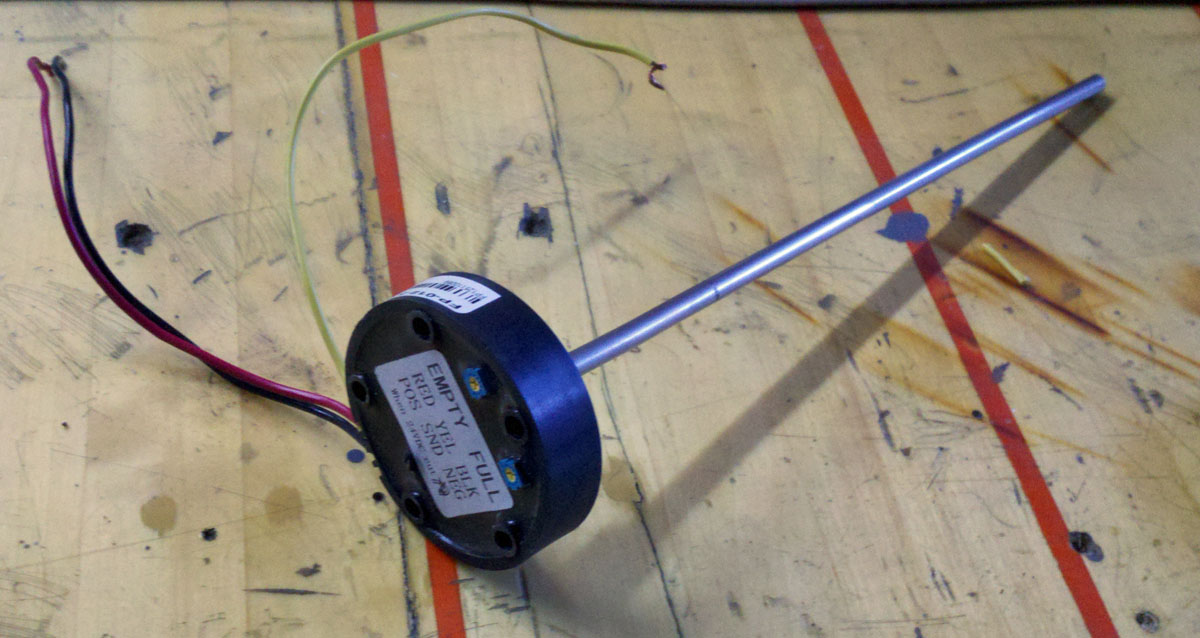

tube:



float:

  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

74hondo

  • Karma: +8/-0
Re: Fuel sending units
« Reply #2 on: March 07, 2014, 10:33:12 PM »
I use the tube  ones as well. Some of them require initial calibrating but they are better than the floats in my opinion.

Sent from my VS980 4G using SoCal Jet Boats mobile app
