boscoooo

  • Karma: +0/-0
460 exhaust manifold gasket
« on: July 26, 2014, 06:57:59 AM »
I had to pull my logs off to change my starter and the gaskets that were on there fell apart when I attempted to reinstall them. Seeing as there's no boat shop open near me can I run just a basic auto gasket or do I need to get marine ones?



Sent from my iPhone using SoCal Jet Boats
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

damfoo

  • Karma: +1/-0
Re: 460 exhaust manifold gasket
« Reply #1 on: July 27, 2014, 09:32:44 AM »
just run auto gaskets or just put a good size bead of high temp silicon. Make sure both flange surfaces are clean, smooth and flat as possible. Put about a 1/4" diameter bead on the center of the flange, lay it down flat some with a wet finger so the silicone does'nt stick to your finger to much, let it sit for about 20min. +/- so it it just skins over a little and slightly stiffens so when you install the manifold it does'nt ooze out excessivley. Carefully place/install the manifold and draw it down evenly but not all the way down, just so the silicone is clearly making contact all the way around the perimeter of the flange area, you will see it start to push outward as you draw the nuts down. Let it sit like this in the sun (heat) to cure the silicon more quickly. Let sit for a couple hours. Then snug them down untill they seat firmly againt the head but no need to over tighten. Over tightening can draw the flanges down at the nuts and warp them  some making sealing more troublesome. Then complete the connection of the exhaust hose and water lines. Manifolds should not be moving during exh. hose install. You should be able to fire the motor for a minute at this point and put some heat into the exhaust flange area but not to much and just idle the motor. Exhaust gas pressure increases with motor rpm. You should be able to head to the water at this point. Keep a wrench handy (9/16"?) for the nuts and check for snugness just before launching. Maybe check again later in the day after running for a while to insure they don't loosen some from expansion/contraction from heat cycles. If done correctly it should last you untill the next time you have to remove them for some reason. Having a tube of silicone (std. and hi temp.) handy is always a good idea with a boat. Goos luck, hope this helps.
« Last Edit: July 27, 2014, 09:42:53 AM by damfoo »
  • Boat #1: 1978 Eliminator, 20' SS,
  • Boat #2: 1981 Syndicate 3/8" runner bottom
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

boscoooo

  • Karma: +0/-0
Re: 460 exhaust manifold gasket
« Reply #2 on: July 27, 2014, 10:30:31 AM »

just run auto gaskets or just put a good size bead of high temp silicon. Make sure both flange surfaces are clean, smooth and flat as possible. Put about a 1/4" diameter bead on the center of the flange, lay it down flat some with a wet finger so the silicone does'nt stick to your finger to much, let it sit for about 20min. +/- so it it just skins over a little and slightly stiffens so when you install the manifold it does'nt ooze out excessivley. Carefully place/install the manifold and draw it down evenly but not all the way down, just so the silicone is clearly making contact all the way around the perimeter of the flange area, you will see it start to push outward as you draw the nuts down. Let it sit like this in the sun (heat) to cure the silicon more quickly. Let sit for a couple hours. Then snug them down untill they seat firmly againt the head but no need to over tighten. Over tightening can draw the flanges down at the nuts and warp them  some making sealing more troublesome. Then complete the connection of the exhaust hose and water lines. Manifolds should not be moving during exh. hose install. You should be able to fire the motor for a minute at this point and put some heat into the exhaust flange area but not to much and just idle the motor. Exhaust gas pressure increases with motor rpm. You should be able to head to the water at this point. Keep a wrench handy (9/16"?) for the nuts and check for snugness just before launching. Maybe check again later in the day after running for a while to insure they don't loosen some from expansion/contraction from heat cycles. If done correctly it should last you untill the next time you have to remove them for some reason. Having a tube of silicone (std. and hi temp.) handy is always a good idea with a boat. Goos luck, hope this helps.
bitchin! thanks man that helped a lot


Sent from my iPhone using SoCal Jet Boats
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

damfoo

  • Karma: +1/-0
Re: 460 exhaust manifold gasket
« Reply #3 on: July 27, 2014, 04:05:54 PM »
kuul, now ya just gotta getter done. haha good luck bud.
  • Boat #1: 1978 Eliminator, 20' SS,
  • Boat #2: 1981 Syndicate 3/8" runner bottom
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

Your Mom

  • Karma: +20/-0
Re: 460 exhaust manifold gasket
« Reply #4 on: July 27, 2014, 04:48:31 PM »
If they are flange type logs good luck. If your have thru bolt any regular gasket will work well on the ports. If you dont have thru bolt... get a pair. I think Jim Brock on this site has a set.

boscoooo

  • Karma: +0/-0
Re: 460 exhaust manifold gasket
« Reply #5 on: July 28, 2014, 12:16:16 AM »

If they are flange type logs good luck. If your have thru bolt any regular gasket will work well on the ports. If you dont have thru bolt... get a pair. I think Jim Brock on this site has a set.
i have thru bolt logs


Sent from my iPhone using SoCal Jet Boats
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

JTMoney

  • Karma: +3/-0
Re: 460 exhaust manifold gasket
« Reply #6 on: July 29, 2014, 02:41:31 PM »
What is the difference from flange vs thru bolt logs. Not sure which I have.  I know bolts go through a flange on mine but other then that I'm confused.


Sent from my iPhone using SoCal Jet Boats
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

Your Mom

  • Karma: +20/-0
Re: 460 exhaust manifold gasket
« Reply #7 on: July 29, 2014, 03:45:17 PM »
These are thru bolt... Ford heads dont have good water flow near ports so if you have flange type they will warp/leak at ports. If you have thru bolt logs with decent gaskets, your good to go.

JTMoney

  • Karma: +3/-0
Re: 460 exhaust manifold gasket
« Reply #8 on: July 29, 2014, 04:30:38 PM »
Ahhh.  I have the crappy ones and I keep getting exhaust leaks.  Who has a set for sale?


Sent from my iPhone using SoCal Jet Boats
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

Your Mom

  • Karma: +20/-0
Re: 460 exhaust manifold gasket
« Reply #9 on: July 29, 2014, 07:45:38 PM »
Hit up Jim Brock Cyclone speed and marine... I sold my last back up set already.

RushinEliminator17

  • Karma: +8/-0
Re: 460 exhaust manifold gasket
« Reply #10 on: July 29, 2014, 09:26:27 PM »

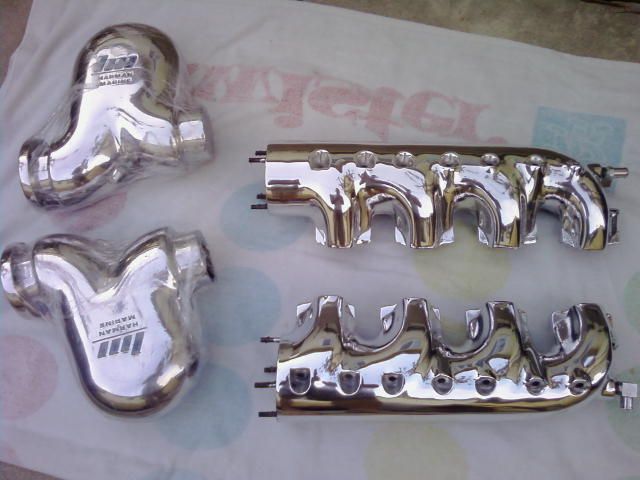

I have a set of those thru bolt harman marine logs with large snails...

300 plus shipping if needed


Sent from my iPhone using SoCalJetBoats
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party
