Diverter for a WJ
« on: July 14, 2008, 09:10:55 AM »
Hello, This is my first post but I have read through the forum and love the wealth of knowledge here.

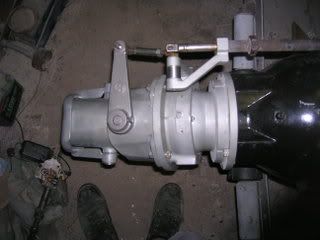

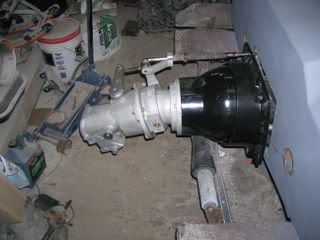

Anyways, I bought a diverter off of ebay for my Jacuzzi WJ and I cannot find any information on it. It bolts up to the bowl and the nozzle bolts to it. The diverter has a plate that says CSM Cusom Speed Marine. It has an electric motor that actuates it up and down. If anyone has any info on it or even better a picture of it hooked up that would be great. I'm having a little trouble figuring out how the steering arm hooks up. Sorry for the bad pics. I took the after I already had it apart.

Thanks in advance

http://i232.photobucket.com/albums/ee197/bears00gt/DSCN1317.jpghttp://i232.photobucket.com/albums/ee197/bears00gt/DSCN1322.jpg
Logged
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

crewchief22

  • Karma: +66/-0
Re: Diverter for a WJ
« Reply #1 on: July 14, 2008, 12:33:18 PM »
Welcome to the fun  ;D

Tom or Josh at Jet Boat Performance should be able to help you determine what you have and get you going in the right direction.

www.jetboatperformance.com
Logged
  • Boat #1: '77 Hondo Pantera GT Jet
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party
"Racing is life!  Anything that happens before or after, is just waiting"    Steve McQueen

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

jet boat performance

  • Karma: +25/-0
Re: Diverter for a WJ
« Reply #2 on: July 14, 2008, 08:20:27 PM »
Classic that trim ,along with several other items was made in San Jose are back in the 70's it works similar to a "jet o vator" and has its own unique set of parts (and problems) I have 2 or 3 setting around maybe call or email if we can help you sort it out Thanks Tom
(my flatty has one of thier manual control handles)
Logged
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

ClassicG3

  • Karma: +0/-0
Re: Diverter for a WJ
« Reply #3 on: July 15, 2008, 08:01:45 AM »
Tom,

I talked to you on the phone last weekend and I forgot to ask you about it. I bought the parts up in New York. Everything seems to work out ok but it appears as though the one arm is threaded and screws onto the steering tube that extends out of the transom. If you have a picture of the back of a boat with one of these setups that would be great. What are some of the problems you mentioned.

Thanks for the help with everything.
Logged
  • Like
    Dislike
    Love
    HaHa
    Angry
    Surprise
    Sad
    Party

ClassicG3

  • Karma: +0/-0
Re: Diverter for a WJ
« Reply #4 on: July 24, 2008, 06:21:38 AM »




If anyone can give me a little guidence, I am trying to hook up my trim today. I am not sure how the steering tube works because if i attach the arm to the tube then the diverter won't actuate and if I leave it unattached the the nozzle steers as I move the diverter up and down. If anyone can help I am in desperate need. my number is 716-984-8246 or shoot me an email at jzymowski@teamfabrication.com

Thanks in advance
