1975 DiMarco Circle Boat Project "SoCalJetBoats Exclusive"

« **Reply #100 on:** January 13, 2014, 08:35:22 PM »

Quote from: rush1 on January 13, 2014, 08:34:43 PM

No more room to park it.

Sent from my SM-P600 using SoCal JetBoats mobile app

Sent from my iPhone using SoCalJetBoats

« **Reply #101 on:** January 13, 2014, 08:36:23 PM »

Quote from: rush1 on January 13, 2014, 08:34:43 PM

No more room to park it.

Sent from my SM-P600 using SoCal JetBoats mobile app

well if I was close to you id offer my place

Sent from my iPhone using SoCalJetBoats

« **Reply #102 on:** January 14, 2014, 05:14:13 PM »

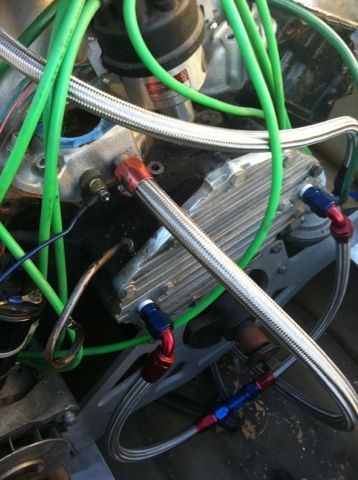

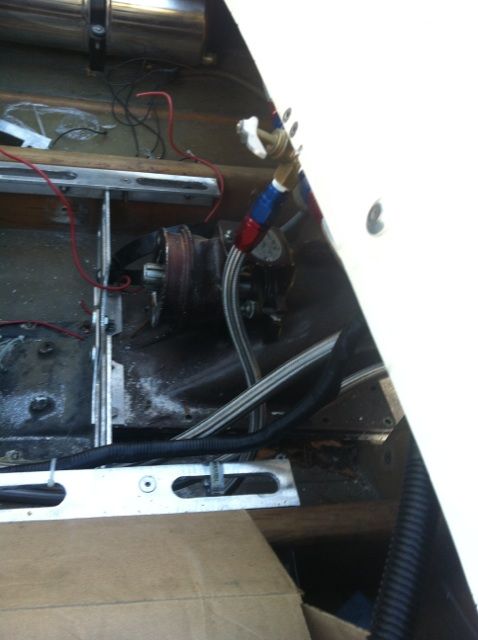

Alright, after working all day on this thing. The pluming is finally done!!!

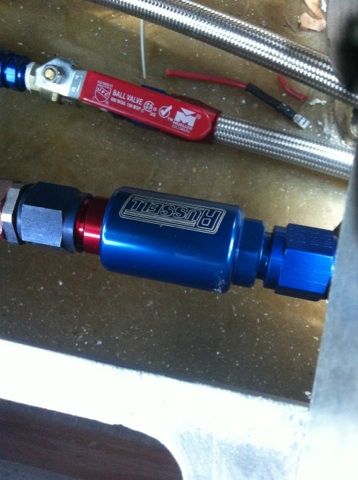

fuel is -8, the water in is -8 and out is -10. Glad that part is over!!!!.

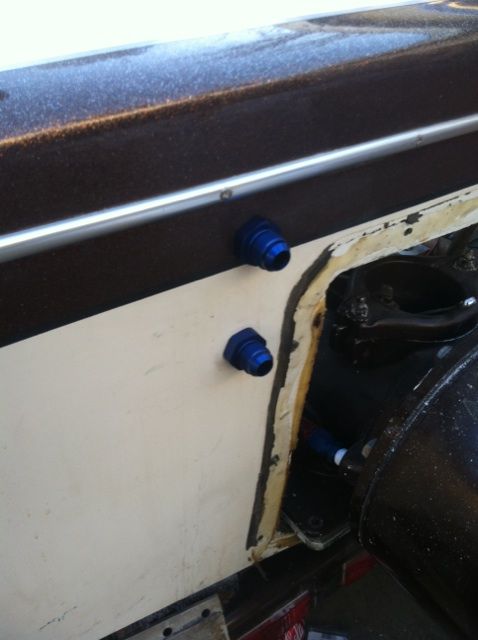

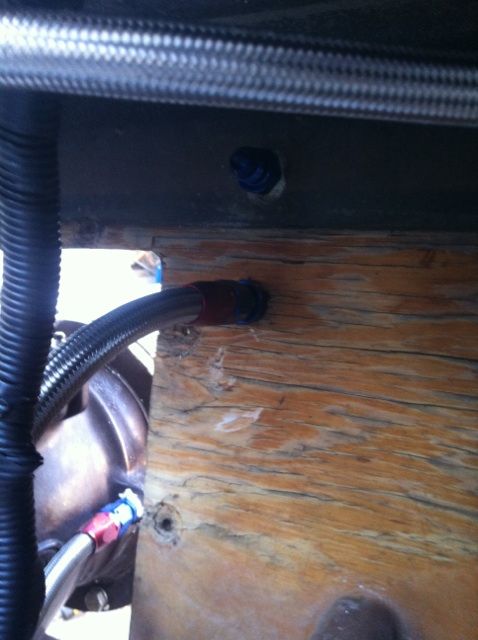

I used some -10 bulkhead fittings for the water and buldge dumps.

Also got my droop snoot today. picked that bad boy up for 150 bucks!!!

« **Reply #103 on:** January 14, 2014, 07:36:55 PM »

Mini droop correct....

-beerjet-

« **Reply #104 on:** January 14, 2014, 08:04:31 PM »

Quote from: beerjet on January 14, 2014, 07:36:55 PM

Mini droop correct....

-beerjet-

It's a regular droop. Got a mini on the swtd though

Sent from my iPhone using SoCalJetBoats mobile app

« **Reply #105 on:** January 14, 2014, 09:12:10 PM »

Looks good, I need to get me one of them droops so i can bolt it up with my 4deg wedge

Sent from my iPad using SoCalJetBoats mobile app

« **Reply #106 on:** January 15, 2014, 08:36:53 AM »

That's funny I'm looking to get a droop myself.

Sent from my SCH-I545 using SoCal JetBoats mobile app

« **Reply #107 on:** January 20, 2014, 07:39:07 PM »

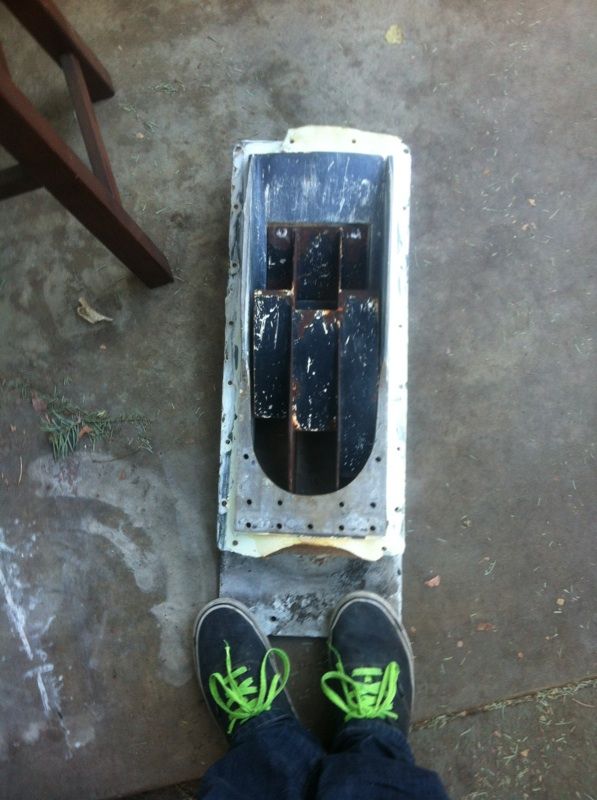

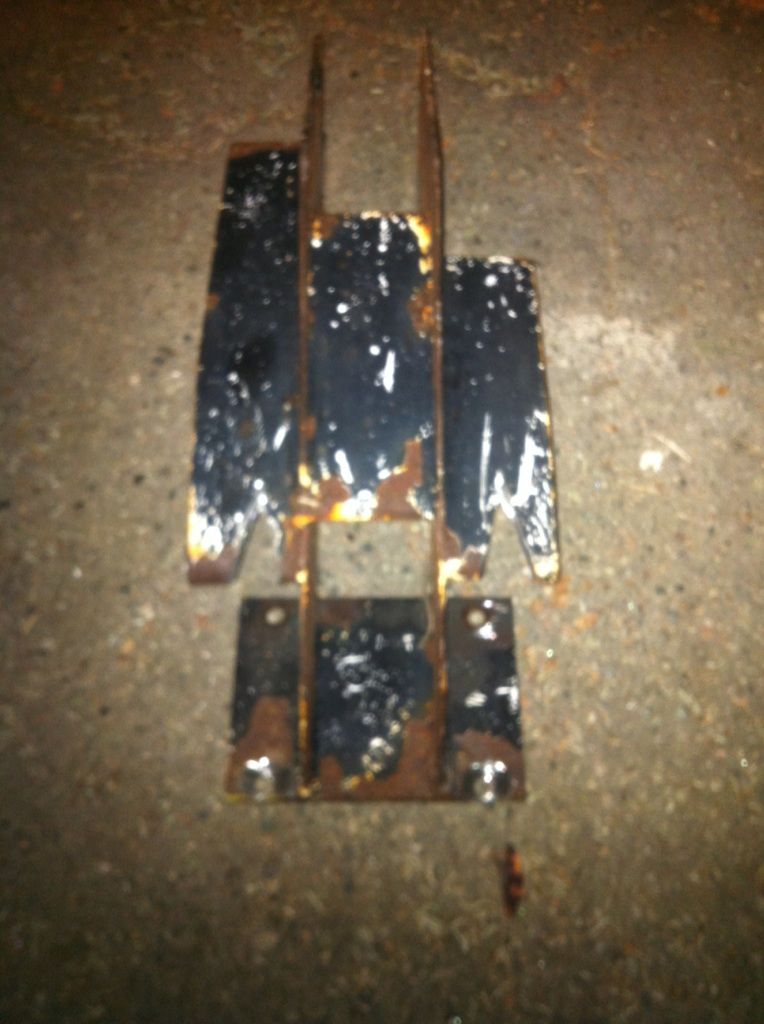

Well i havet got much done do to one major thing i was hoping to avoid. The stupid loader grate was stuck on the intake. It was tapped with 5/8ths bolts and had steal Slotted head bolts that were rusted in there. So i had no choice but to pop the intake out.
Ill have to mill out the rusted bolt holes. My old Drill wont do the job.

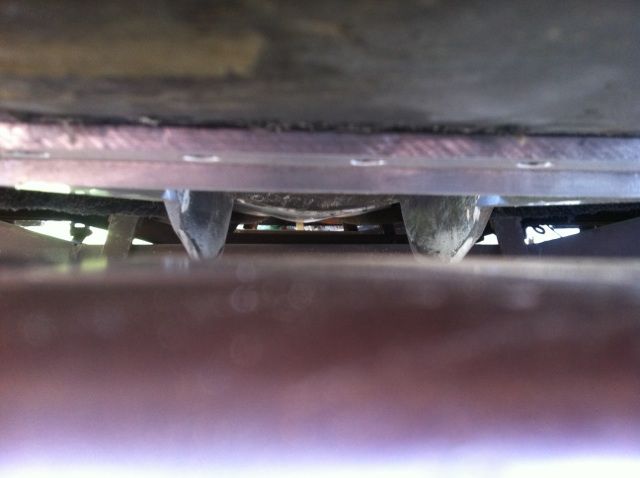

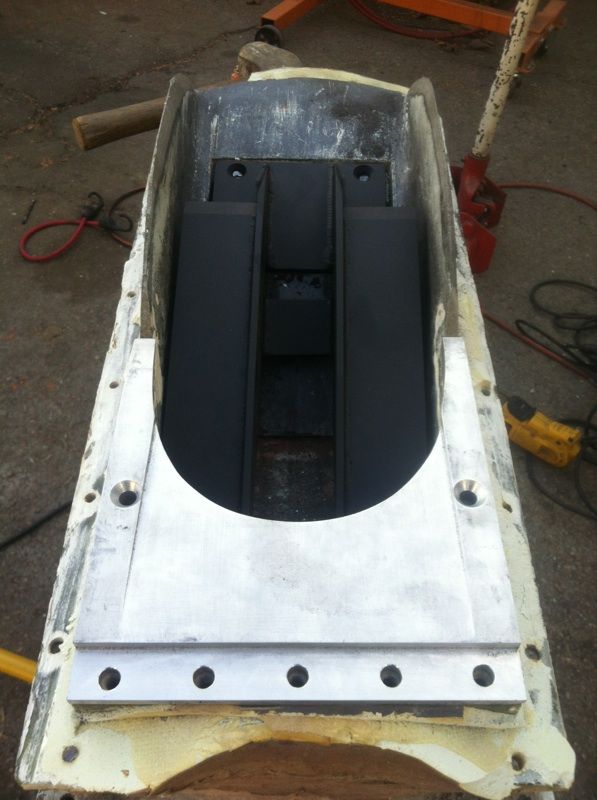

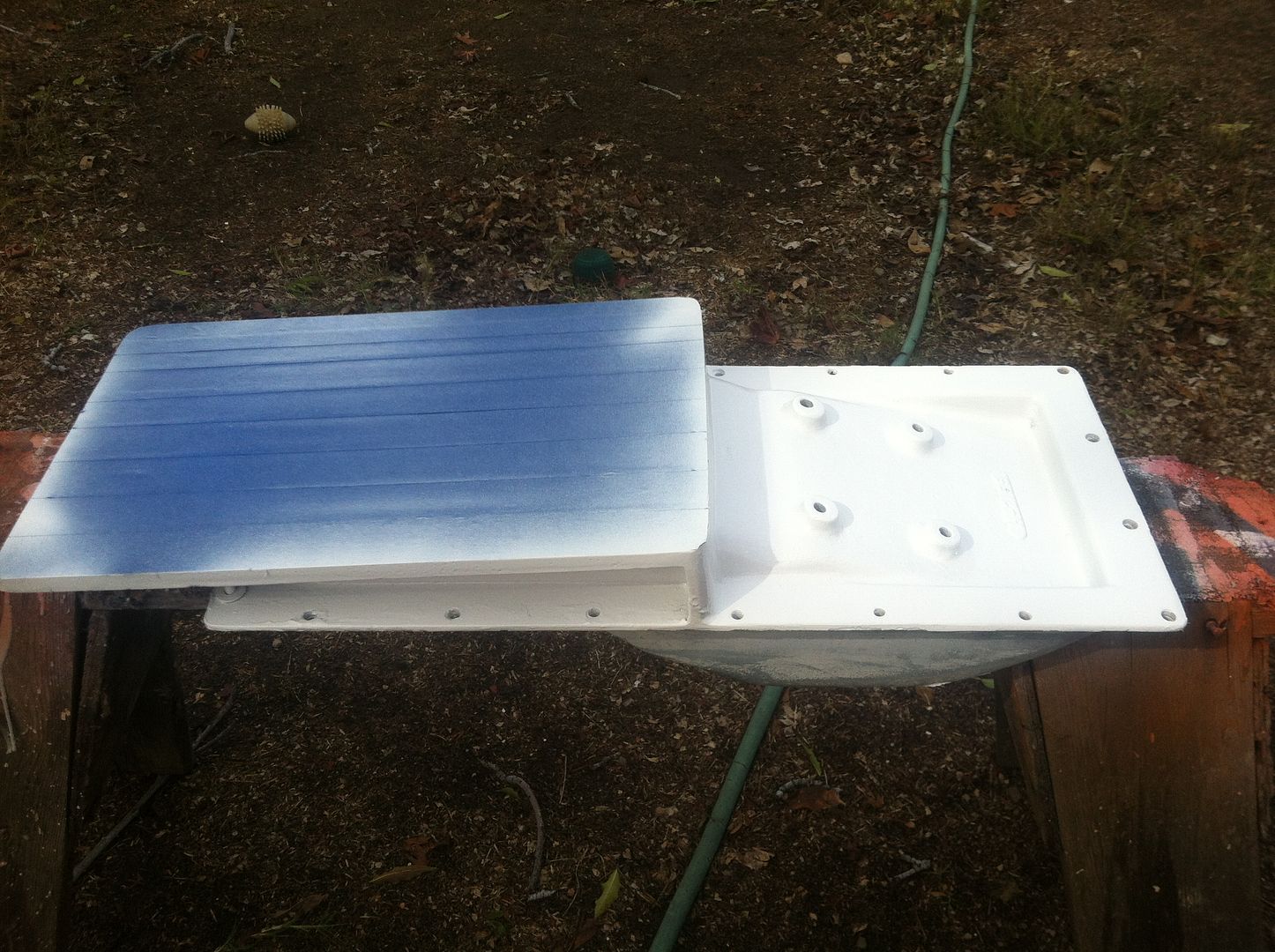

The intake with the new 2.5 degree back cut shoe and the new B1 loader.

« **Reply #108 on:** January 20, 2014, 07:43:41 PM »

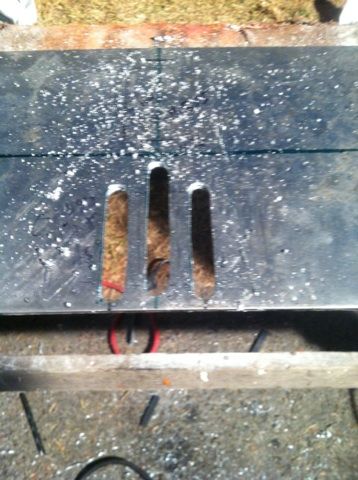

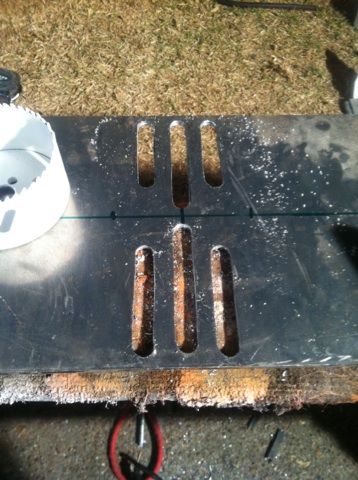

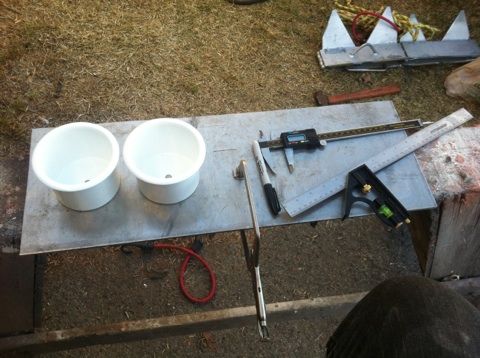

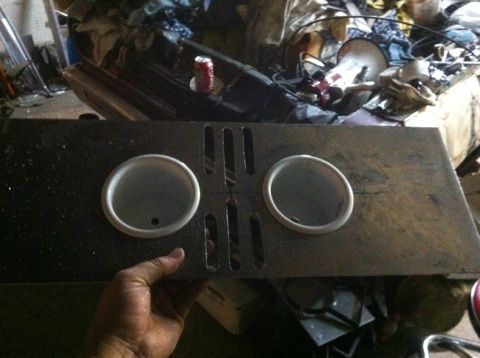

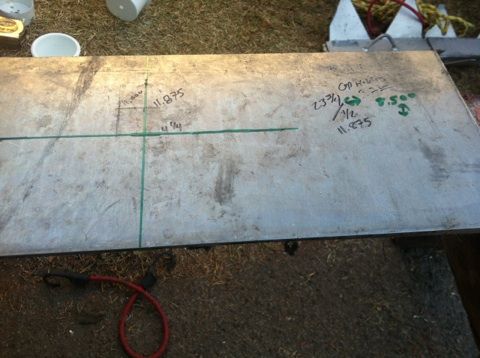

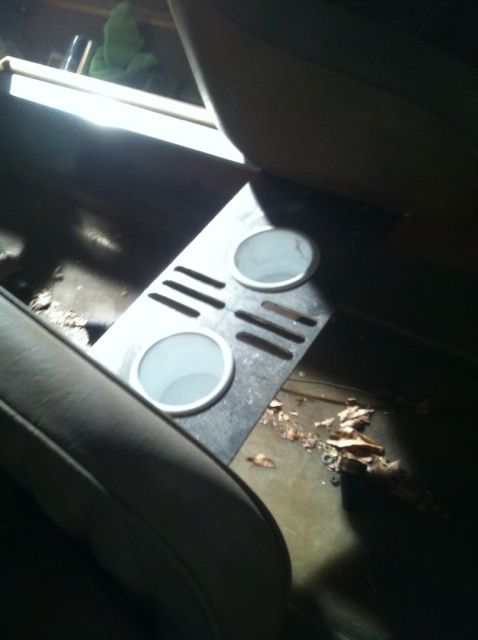

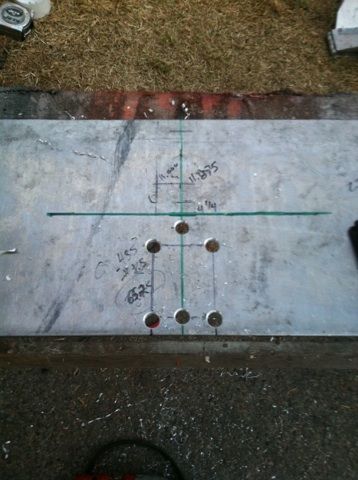

Today i got done one of the key parts of this boat. A cup holder tray!!!

I think i went a bit overboard again with the milling out look. what do you think?
1/2 inch slots and 3 and 1/2 inch cup holders.

« **Reply #109 on:** January 20, 2014, 07:49:00 PM »

Looks like a nice shin buster

« **Reply #110 on:** January 20, 2014, 08:28:43 PM »

Ouch

Sent from my iPad using SoCalJetBoats mobile app

« **Reply #111 on:** January 20, 2014, 08:45:52 PM »

More slots Jake, throw some horizontals on there.

« **Reply #112 on:** January 20, 2014, 09:35:30 PM »

Quote from: lupo1904 on January 20, 2014, 08:45:52 PM

More slots Jake, throw some horizontals on there.

thought about it Chris, just think it would look right.

Sent from my iPhone using SoCalJetBoats mobile app

« **Reply #113 on:** March 03, 2014, 02:38:54 PM »

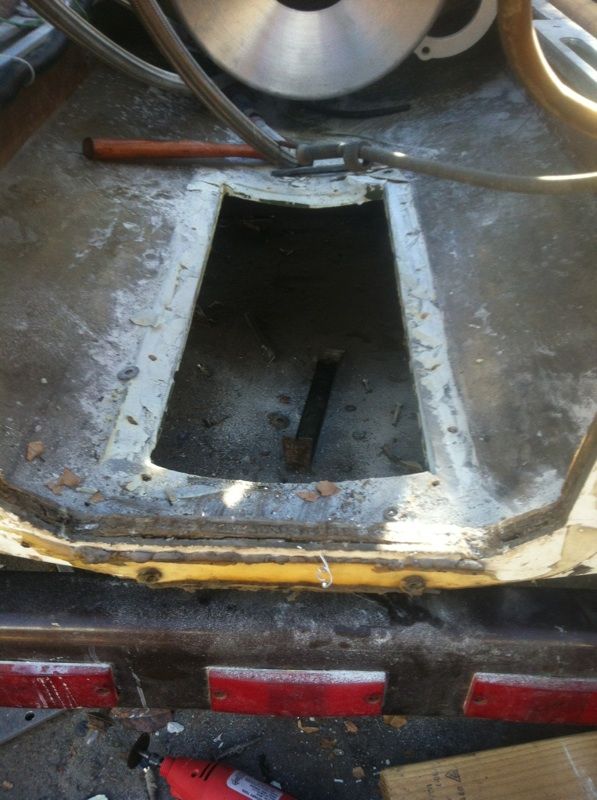

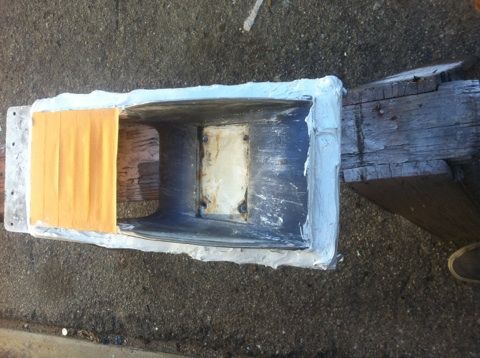

Little update. got the intake taken care of. Got the old rusted bolts milled out.
Got the rest of the old epoxy ground out and the intake painted

« **Reply #114 on:** March 03, 2014, 05:38:36 PM »

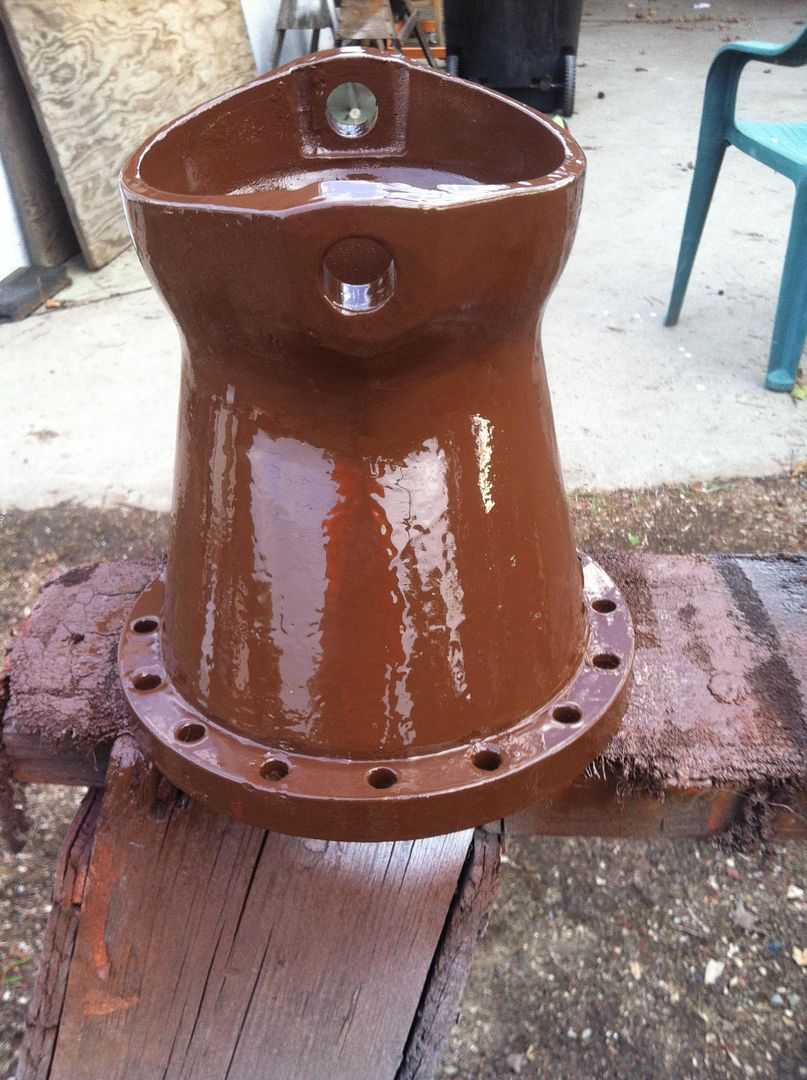

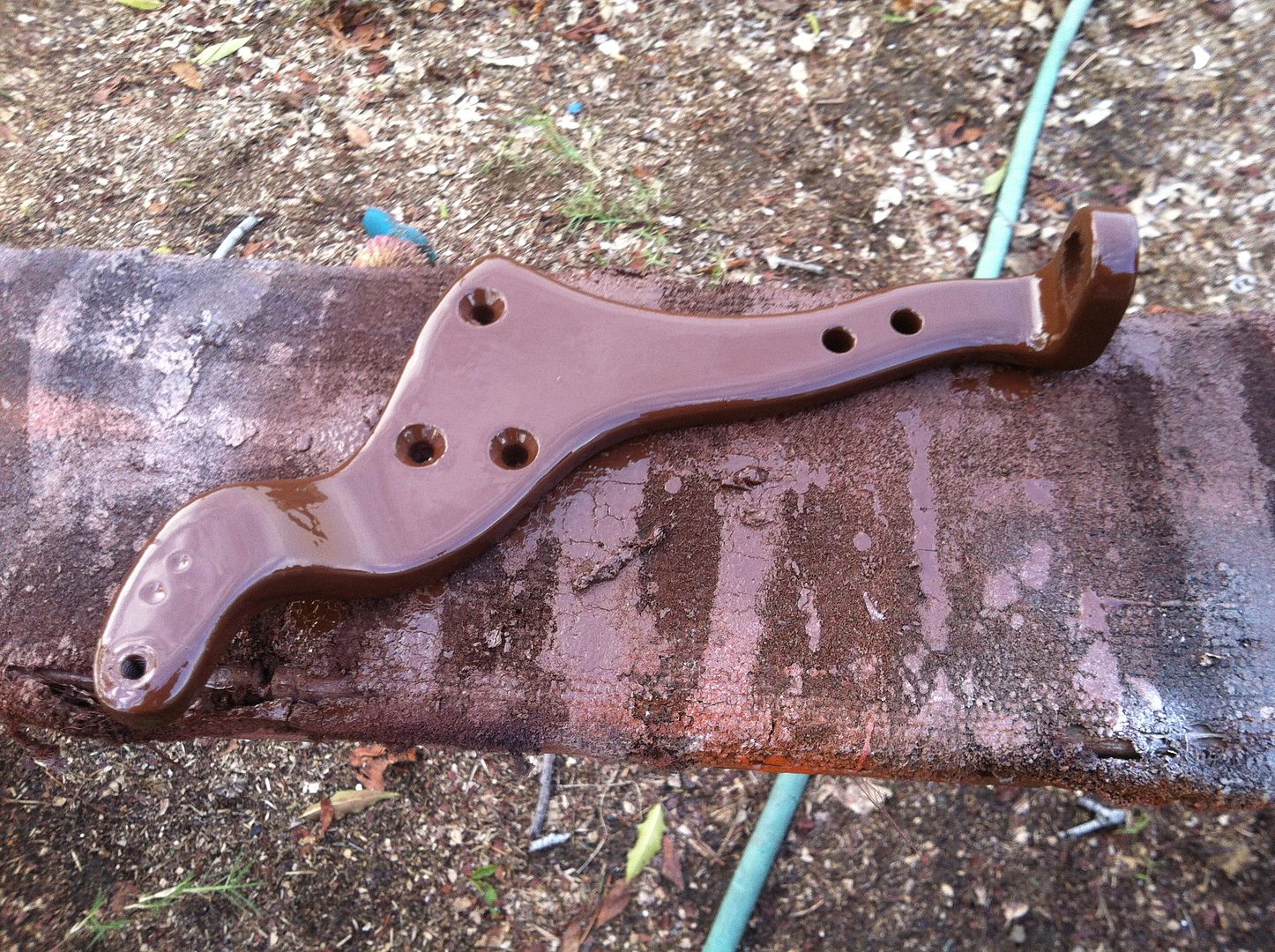

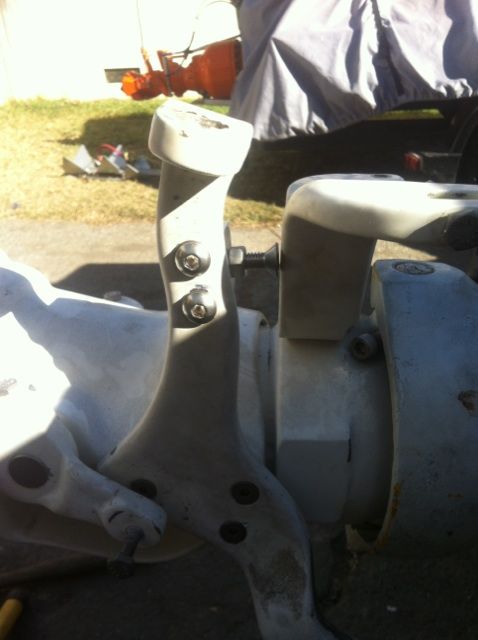

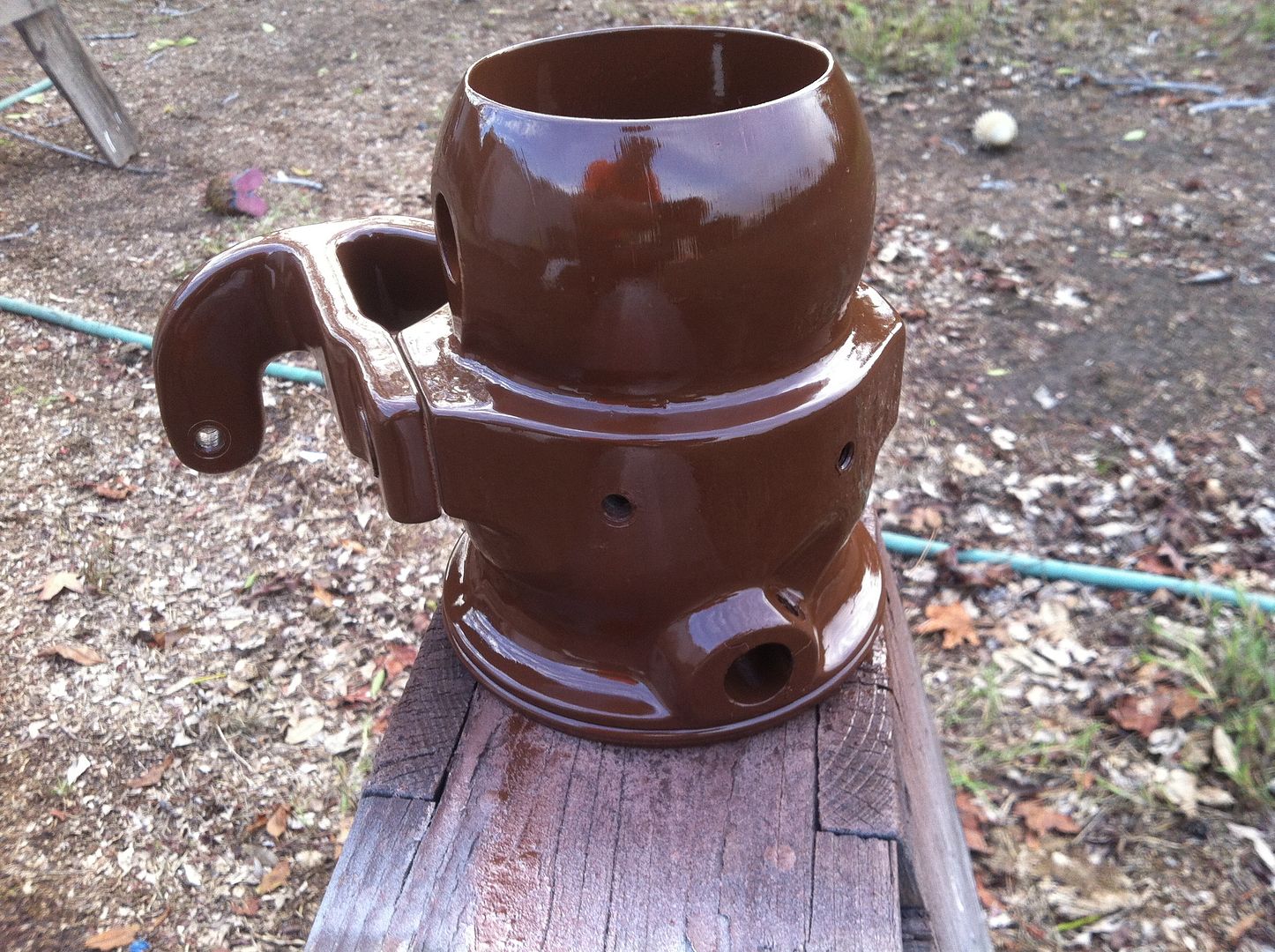

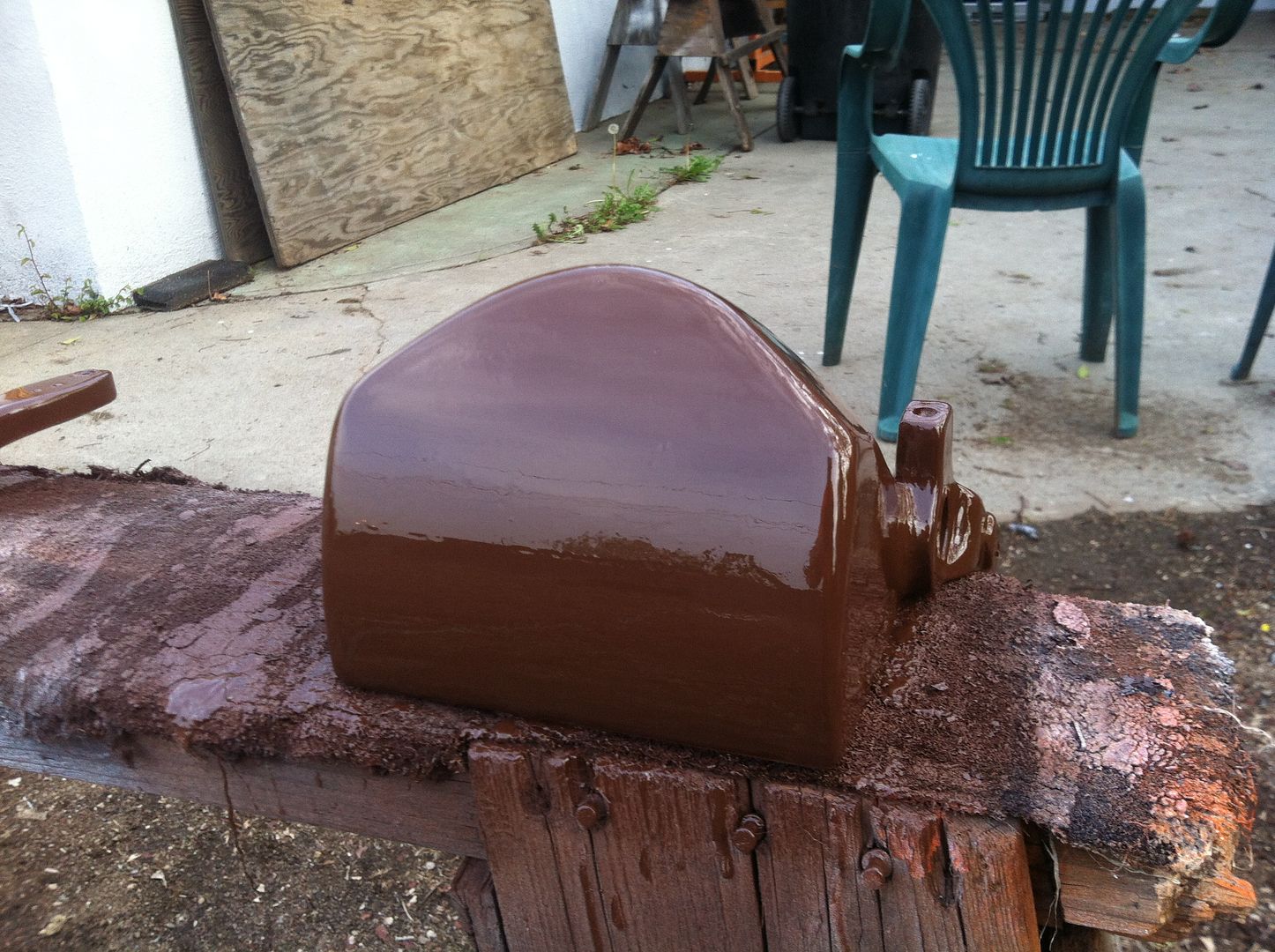

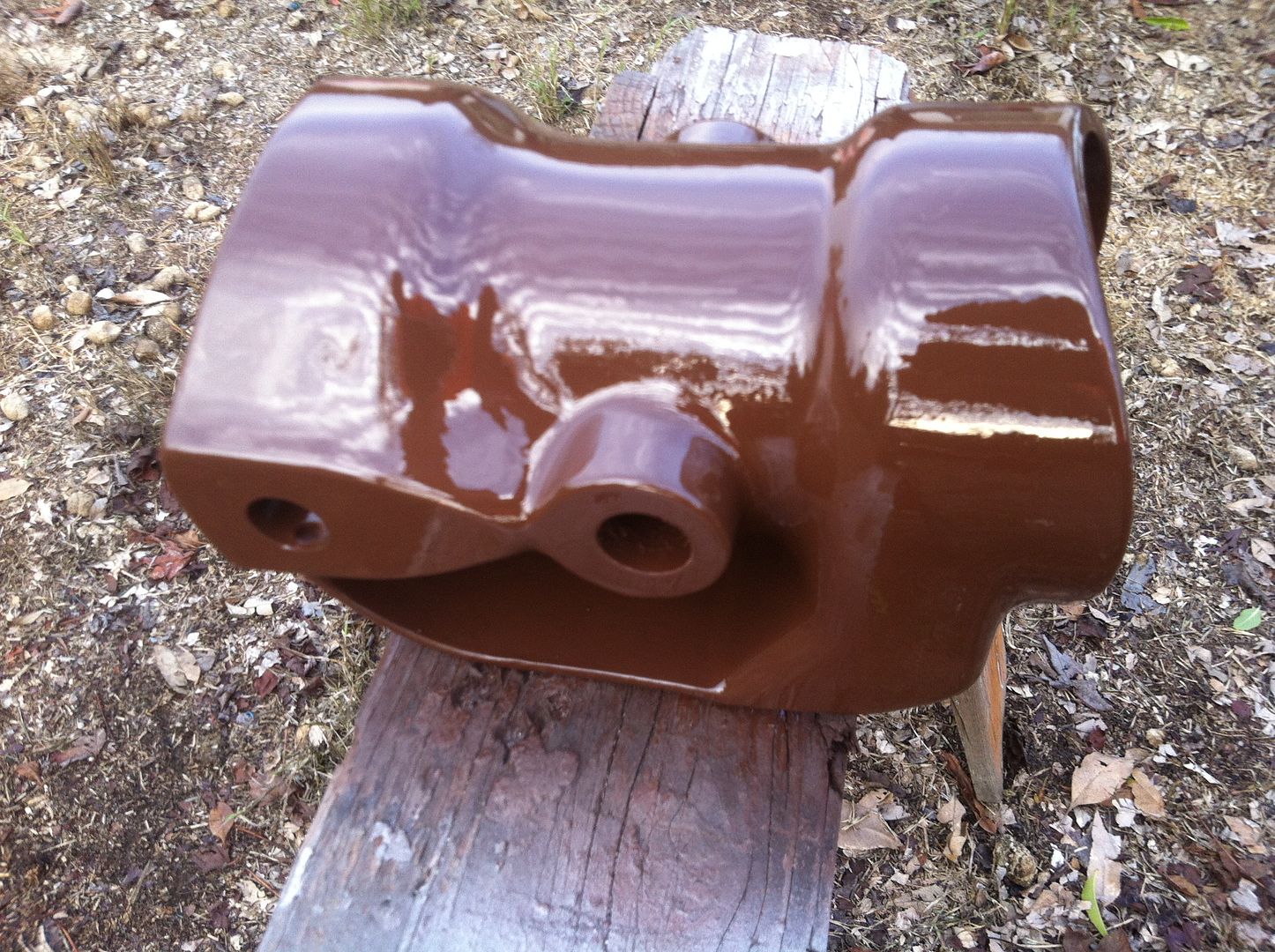

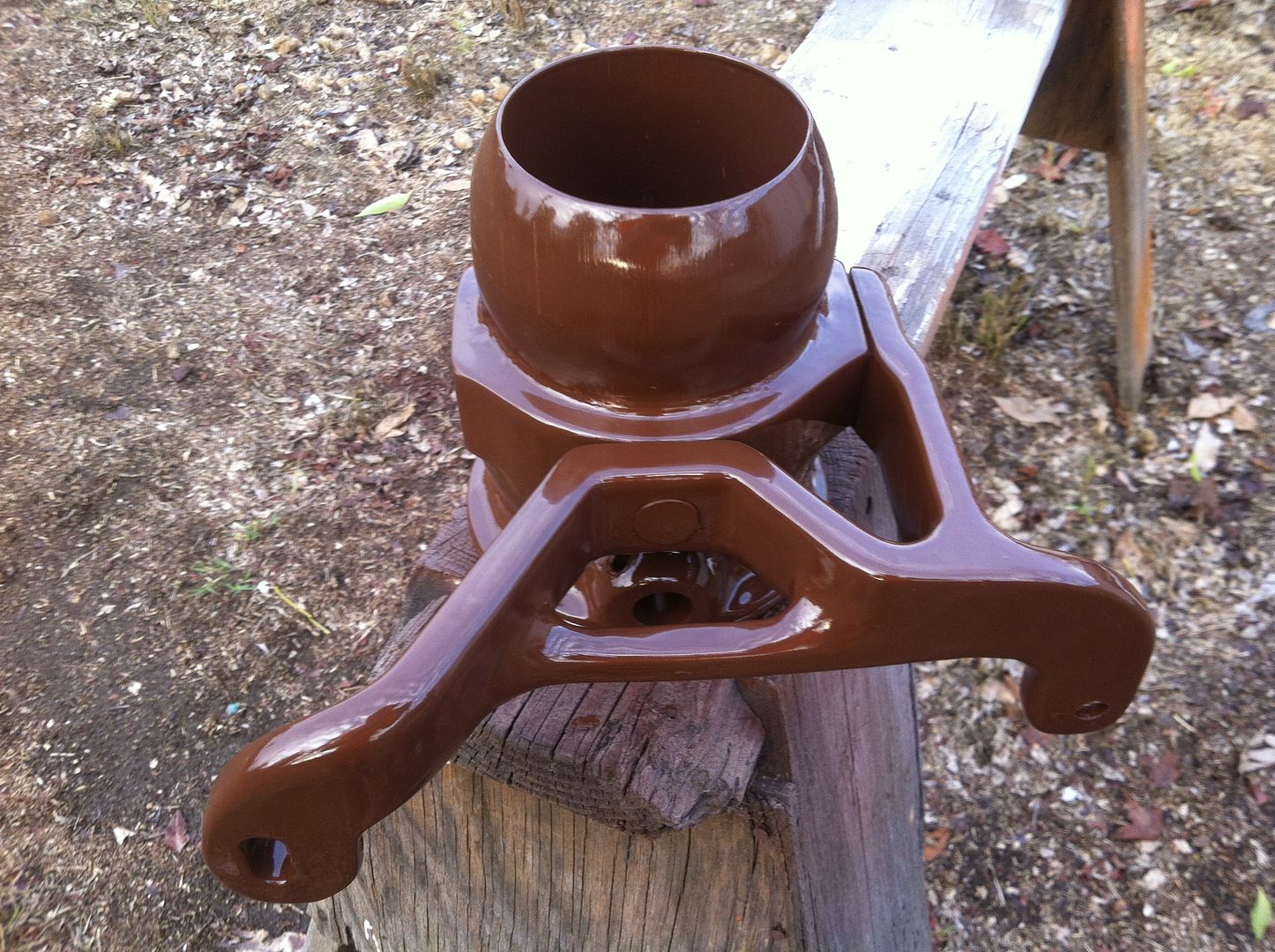

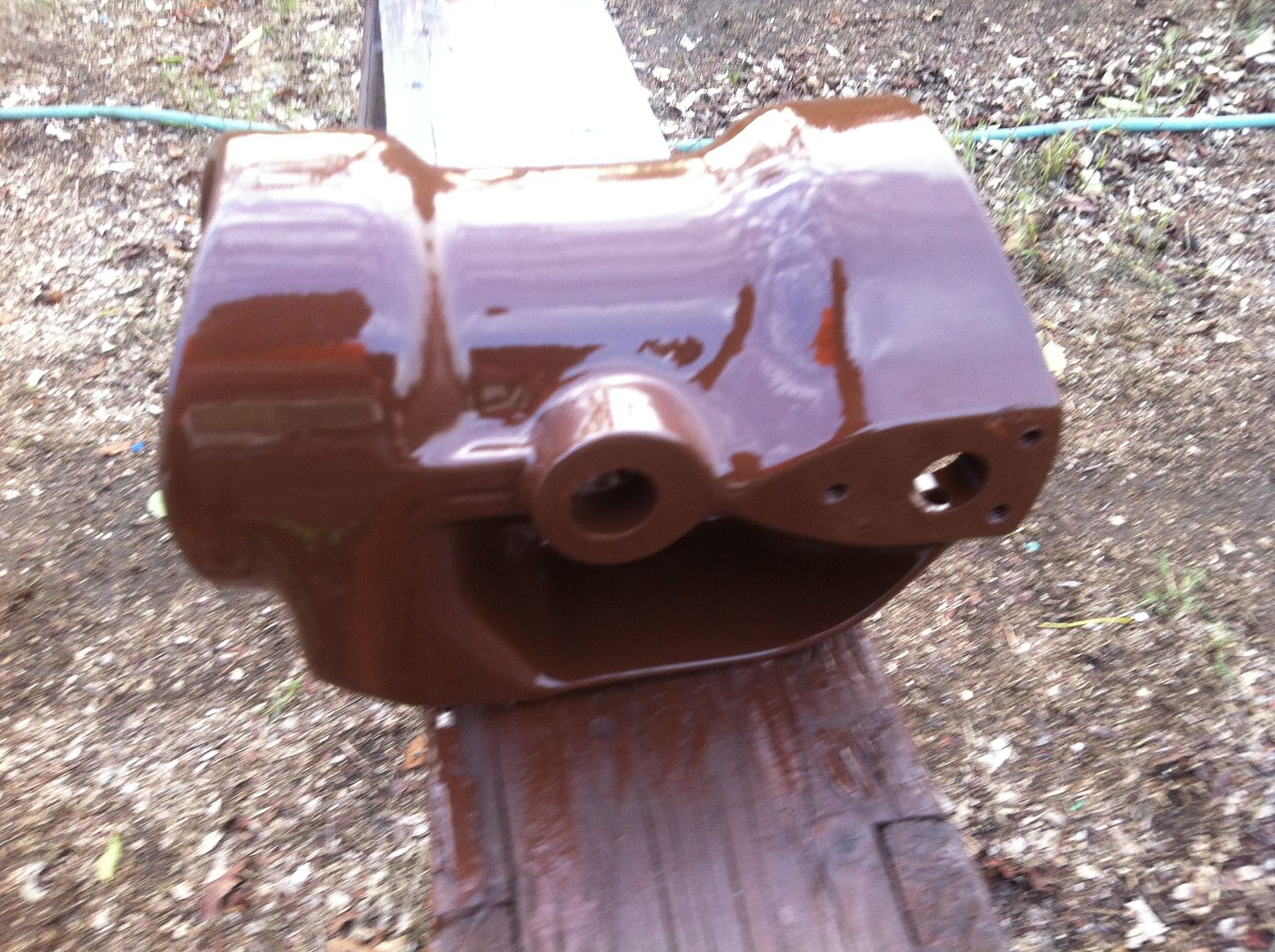

Scuffed up the droop and the diverter parts with 220 and layed down some brown and clear.

« **Reply #115 on:** March 03, 2014, 07:53:23 PM »

Quote from: Brad @ SCJB on January 20, 2014, 07:49:00 PM

Looks like a nice shin buster

I really hope I'm there to witness the first gaping wound!

-beerjet-

« **Reply #116 on:** March 03, 2014, 08:36:39 PM »

It will be my luck. 🚤💨💨💨💨💨

Sent from my iPhone using SoCalJetBoats mobile app

« **Reply #117 on:** March 04, 2014, 04:42:35 PM »

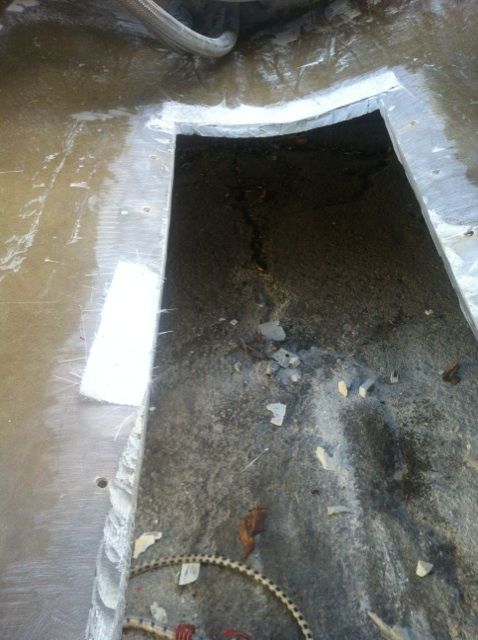

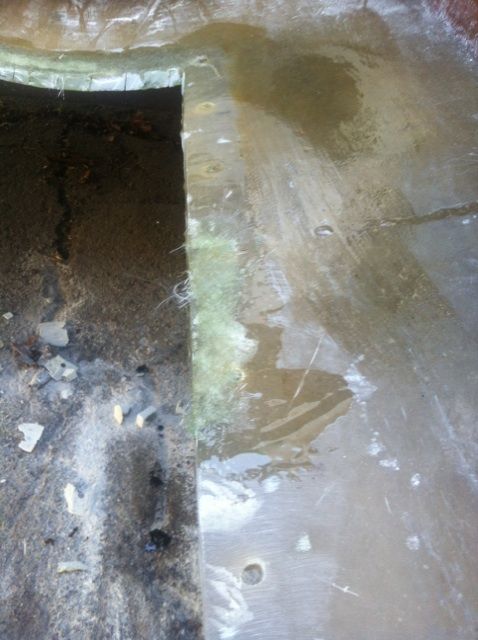

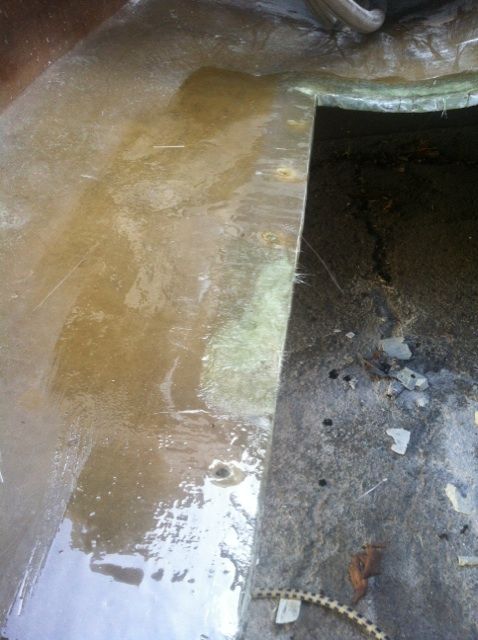

Got some glass work done around the intake and transom this afternoon.

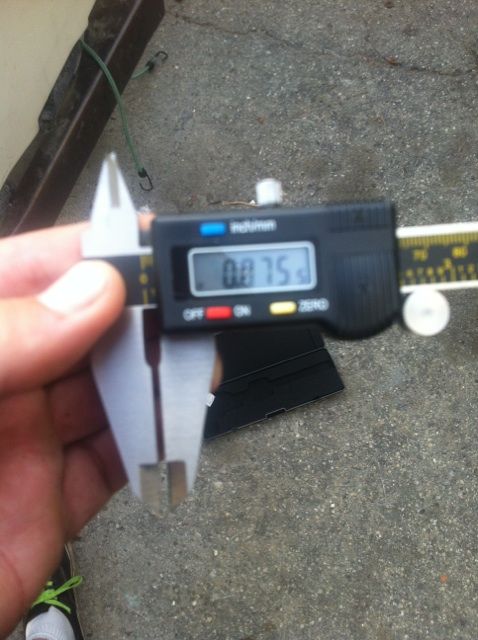

When i removed the intake i took some glass with it. Also where the keel was clearanced for the ride plate was way too thin. .075 thin to be exact

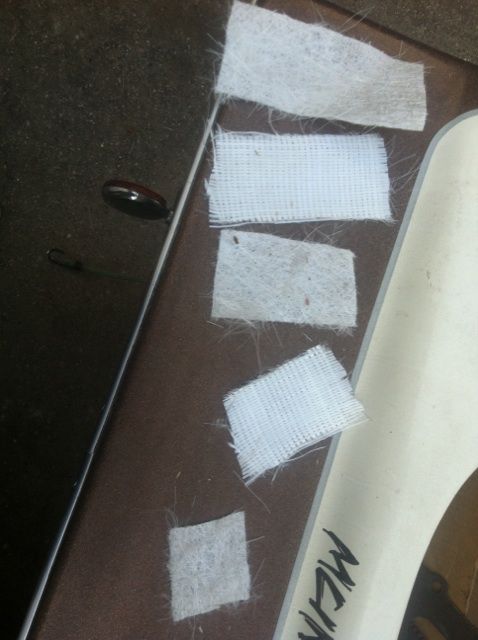

So i layed up alternating layers of 1708 bi-axle and 3 oz cloth

« **Reply #118 on:** March 04, 2014, 04:49:33 PM »

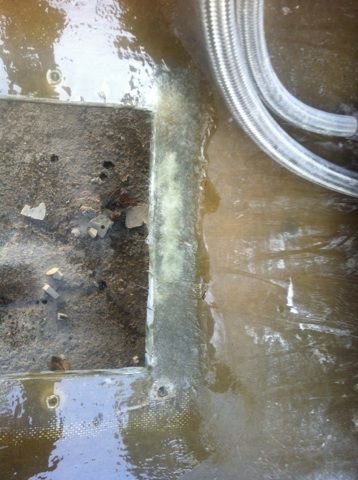

The i fixed up some spots around the intake with 3 oz cloth.

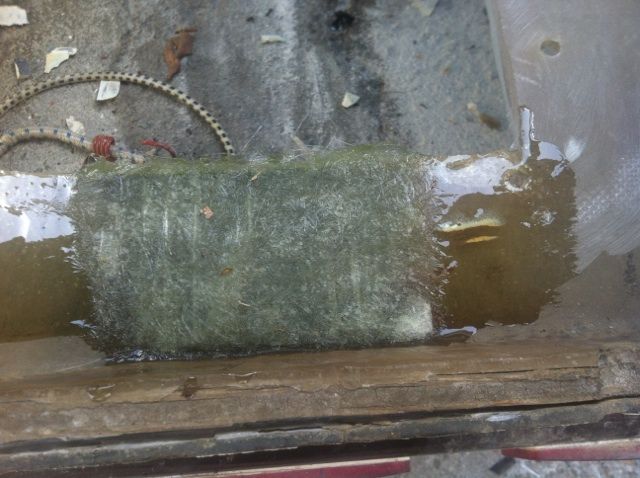

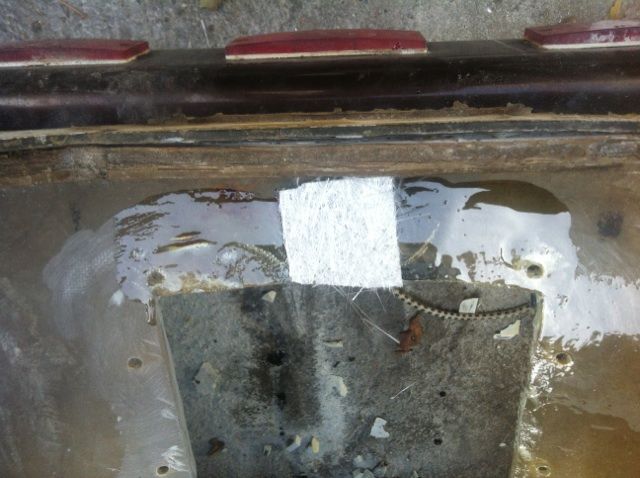

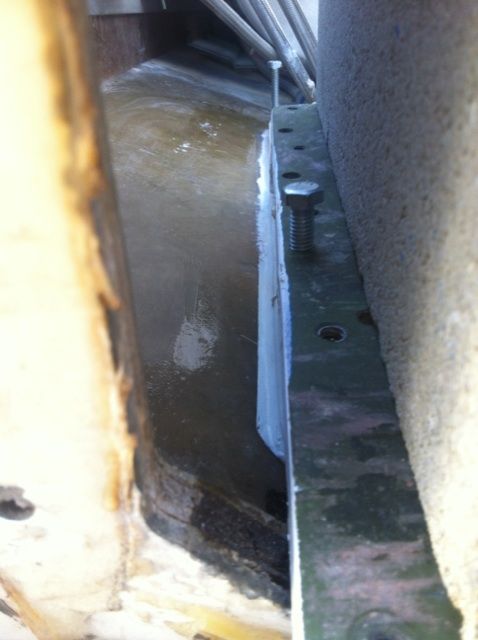

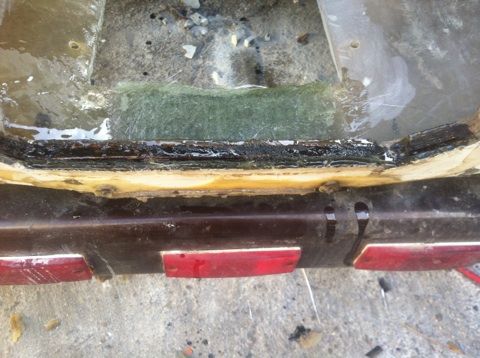

The last thing i did was fix part of the transom that was separating from the fiberglass.

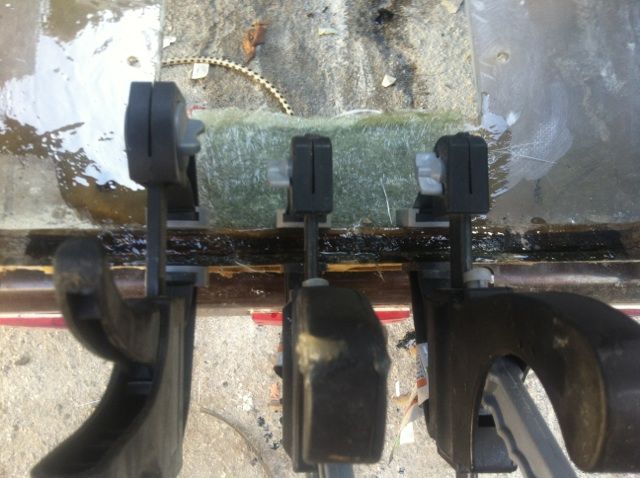

I ground out the area and stuffed it full of 3 oz cloth, then clamped them back together.

« **Reply #119 on:** March 04, 2014, 09:50:54 PM »

Nice work jake

THE BEAV

« **Reply #120 on:** March 09, 2014, 07:09:17 PM »

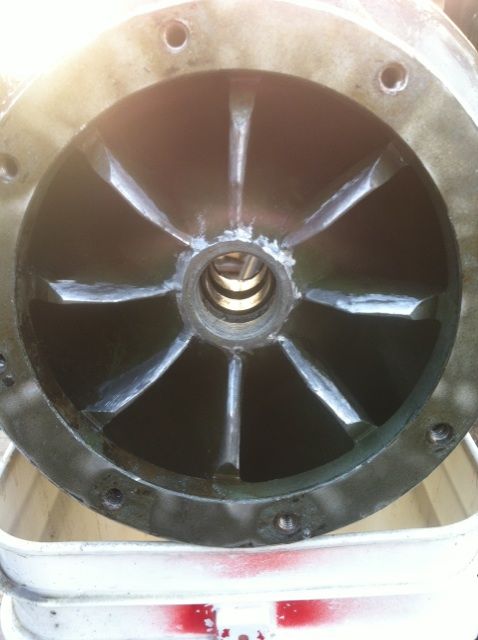

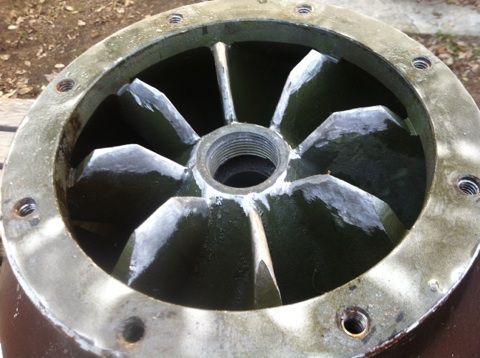

I got bored sitting around waiting for the glass to dry, so i ended up detailing the exit side of the bowl. used all hand tools to do this.

« **Reply #121 on:** March 09, 2014, 07:17:41 PM »

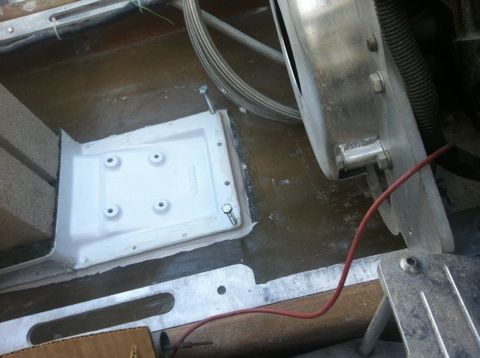

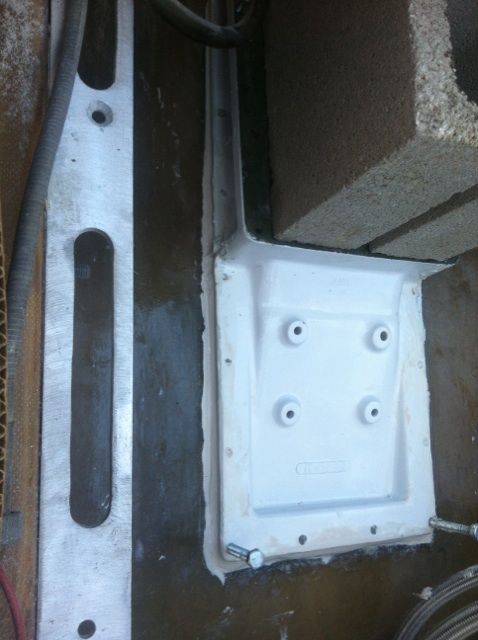

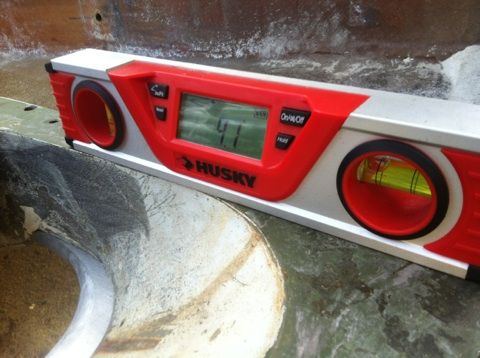

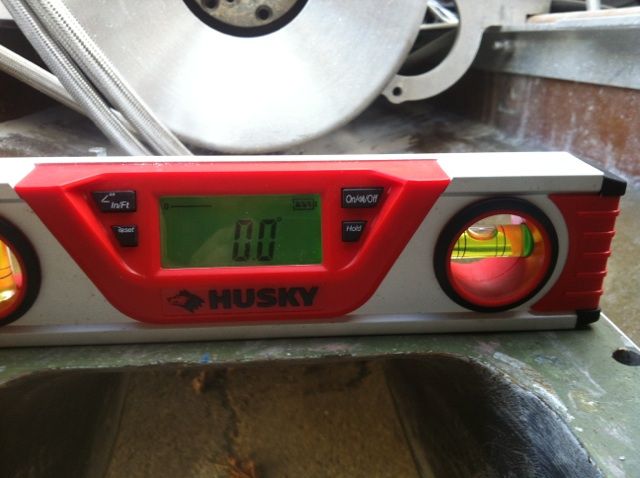

Today i got the intake reset in the boat. I made sure the the shoe was around 1/8 of an inch above keel and the intake was set in at 4.1 degrees. ALSO F that sea going epoxy! it sucks to work with! Ill have to flip the boat over to blend the intake entry here in a few days.

« **Reply #122 on:** March 10, 2014, 08:34:03 PM »

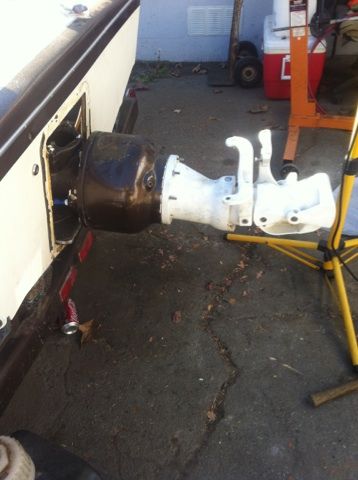

Got the pump all buttoned back up and into the boat to see what it will look like.

Sent from my iPhone using SoCalJetBoats mobile app

« **Reply #123 on:** March 10, 2014, 08:57:15 PM »

Mr. Hanky the christmas poo! Throw a santa cap on the end of that thing jake! Seriously looks killer though!

« **Reply #124 on:** March 10, 2014, 09:19:10 PM »

Quote from: rhino on March 10, 2014, 08:57:15 PM

Mr. Hanky the christmas poo! Throw a santa cap on the end of that thing jake! Seriously looks killer though!

Haha, thanks bud. It's slowly getting there.

Sent from my iPhone using SoCalJetBoats mobile app
