My first jet. 69 schiada

« **Reply #25 on:** April 22, 2009, 07:39:56 PM »

brad, i think we might need to move this to the project forum, ha! today i had quite the busy afternoon.

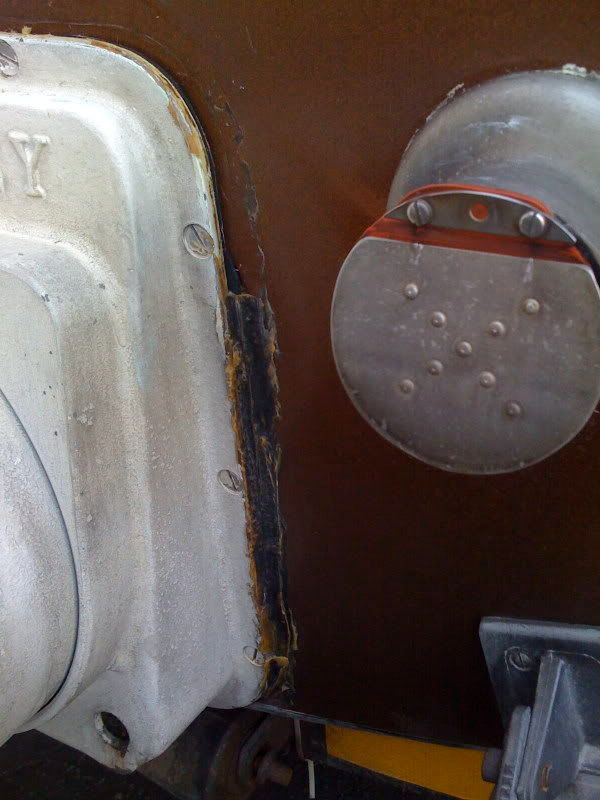

started off scraping off the ungodly sealer, silicon whatever it was off the transom, and resealed it with silicone. i think it looks alot better.
Oh yeah heres a tip: old credit cards from thieving banks work good to smooth out silicone. i used wamu since they raised my rate from 8% to 31% for no reason
Before

After

Then i got a wild hair to do some more to the boat.
Before

After

and then the Big brown Truck showed up with goodies from tom and i started doing this

Once again, Tom is the best. (notice the keychain)ordered parts on monday at 5pm and already started installing them

« **Reply #26 on:** April 22, 2009, 08:11:28 PM »

You go Kid !! thats one classy little Hot Rod ! one of my Favs ! That 16/sbc will out run some of the big dogs Nice work !
heres but of few Pics courtesy of My friend Mike Schiada

« **Reply #27 on:** April 22, 2009, 08:28:58 PM »

BAMF Tom!!! thanks for the pix, and the parts, ill be ordering some angle bezels and a bilge switch from you soon, any chance of getting that in anno brown? lol. ill have more pic up this weekend.
Oh is there a painless wiring kit that is pretty good for these old jets?

« **Reply #28 on:** April 22, 2009, 08:53:42 PM »

Quote from: sandeggo on April 22, 2009, 08:28:58 PM

BAMF Tom!!! thanks for the pix, and the parts, ill be ordering some angle bezels and a bilge switch from you soon, any chance of getting that in anno brown? lol. ill have more pic up this weekend.
Oh is there a painless wiring kit that is pretty good for these old jets?

Mine is painless

« **Reply #29 on:** April 22, 2009, 09:28:55 PM »

Pm me the specs tom, I am interested in the setup

« **Reply #30 on:** April 23, 2009, 07:39:42 AM »

question on the steering rack, do the teeth on the opening in the rack box face the floor or the underside of the bow, or does it even matter?

« **Reply #31 on:** April 23, 2009, 07:49:04 AM »

Yes it does, more than one person on this site has installed it upside down and had the steering reversed. Don't remember which is the correct way though, I want to say on top of the steering gear.

Call Tom or search other posts here for it. The info is here, just no time to search it out for ya.

Ray

I lied, found it for ya

http://www.socaljetboats.com/index.php?topic=1689.msg67843#msg67843

« **Reply #32 on:** April 23, 2009, 08:01:25 AM »

On a jet the cable exits to the left and the rack mounts to the of the pinion , Very rarely the cable will run to the right and changes this Tom

« **Reply #33 on:** April 23, 2009, 09:03:52 AM »

ya I knew which way thecable goes but my question was referring to the pinion, which I may have installed upsidedown, at least it isn't fully installed yet, thanks for the help

« **Reply #34 on:** April 23, 2009, 09:38:27 AM »

Quote from: sandeggo on April 21, 2009, 09:06:15 PM

Pops bailed on the father son project, so I sold it. Sold it for cheaper than the motor was worth

You dident happen to sell the boat to a tall skinny guy named Rod did you?

« **Reply #35 on:** April 23, 2009, 10:08:30 AM »

Yep he got a smokin deal

« **Reply #36 on:** April 24, 2009, 03:05:21 PM »

hit 2 snags today.

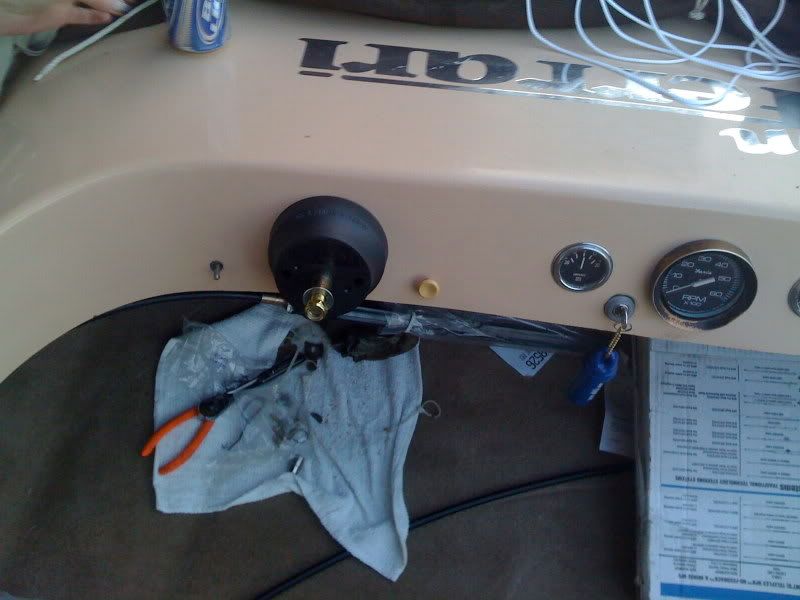

first i was beginning to finish the rack install and found out i need a new steering wheel adapter, quick call to tom got me setup.
2nd snag isnt so good. turns out the passenger side gas tank decided to start seeping. also tuns out the stainless gas tanks arent actually stainless, i was wondering why they were painted. im thinking about trying some of that epoxy stuff they use in motorcycle gas tanks, anyone ever used this stuff?

« **Reply #37 on:** April 24, 2009, 04:19:42 PM »

what steering arm do i need to get?

« **Reply #38 on:** April 24, 2009, 06:01:31 PM »

Quote from: sandeggo on April 24, 2009, 04:19:42 PM

what steering arm do i need to get?

That one LOL, what's wrong with the one you have? I have both designs, the one you have uses a 43C cable for the reverse gate, the otheres use a 43BC (the B stands for bulkhead)..

GT

« **Reply #39 on:** April 24, 2009, 06:14:00 PM »

tom sent me the bulkhead cable instead of the one that clamps like mine is setup. got an extra arm gt?

« **Reply #40 on:** April 24, 2009, 06:27:12 PM »

Quote from: sandeggo on April 24, 2009, 06:14:00 PM

tom sent me the bulkhead cable instead of the one that clamps like mine is setup. got an extra arm gt?

Yes I do...

PM sent

« **Reply #41 on:** April 24, 2009, 10:34:51 PM »

FWIW, you will need; tiller (gotcha covered), bucket (gotcha covered), short king pin(gotcha covered), I also have a later nozzle for ya

, but you may need the hinge pin and the cable end hardware for the bucket to attatch to the cable if I don't find an extra one... $:-\$

Keep you posted!

GT

« **Reply #42 on:** April 24, 2009, 10:49:56 PM »

you are the man!!!

« **Reply #43 on:** April 25, 2009, 09:09:31 AM »

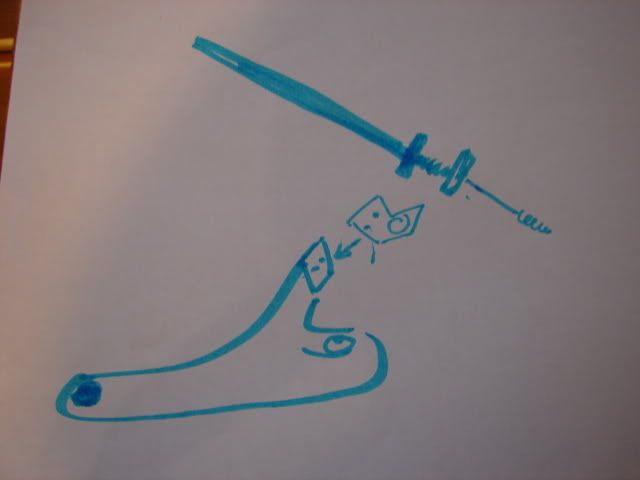

If your wanting to get by till you get the updated arm simply make a small "L" Bracket to Screw to the arm (strap screws) with a large mounting hole for the bulhead style cable connection anchor !

« **Reply #44 on:** April 25, 2009, 07:06:44 PM »

good idear tom.
today i got the gunnel tank out and it was a tiny lil pinhole. so after much debate i went and got some jb weld. slathered that shit all over the area of the pinhole. jb says on their website that it can withstand gas, so i figure i will try it. i just dont have time to make tanks right now.

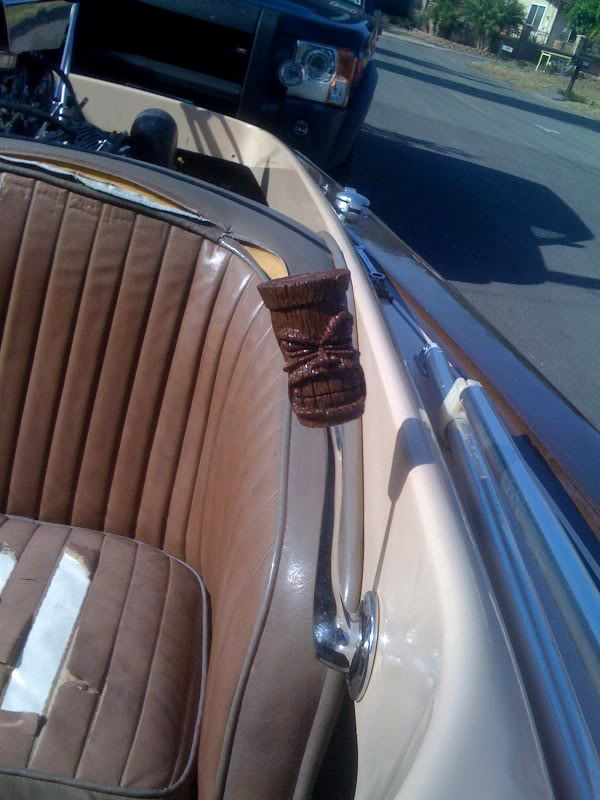

i got my shifter knob in, and got that all painted up. and i started putting the lights on the trailer. tomorrow after the good ole jb is setup, i will throw some gas in to see if she holds, if everythings all good, i will throw some mat on where i cut to tab it back in.
im hoping to make my deadline and be on my way out to the river friday morning. i gotta get some tires.

« **Reply #45 on:** April 26, 2009, 12:23:56 PM »

Hey Kev- that thing is bad ass- cant wait to see in the water- my buddy has a 21 river cruzer with similar colors and he went with black switches and bezels and it looks so f n classy- I have the stock nozzle,fin, rev bucket and off my dominator- if you want it it is all yours, it has the tiller arm and all the shat- if you need a hand with anything let me know- just up the road- how was riches dealio??? bummed I couldnt make it-

« **Reply #46 on:** April 26, 2009, 07:36:28 PM »

thank bo, when you guys headin out? i hear you on the black, my boat already has a black pinstripe. we had a good time at riches. i will take you up on that if i run into a snag. will the dominator stuff work on the berk? (new guy)? if so then i will just get your stuff bo and save gt the trouble of sending that stuff out to me.either way its cool to be offered free parts. this board is the shit! everything went good today. got the jb welded tank dried up, put some gas in it and hooked up the air compressor to it, no leaks, so i glassed it back in. then mounted the shifter up. went to west marine, got a battery switch for dual batteries, and got a bilge with float switch. call it overboard but now ill be running dual bilges. whats the best way to mount the bilge pumps, i dont want to screw into the floor, epoxy?

do you think id have room for a bench with buckets?

« **Reply #47 on:** April 26, 2009, 08:27:15 PM »

one other thing, im missing the little barrel bolt to connect the fwd/rev cable to the shifter, anyone know a common place to get one?

« **Reply #48 on:** April 27, 2009, 08:39:01 PM »

Gotcha on the "barrle bolt" , re the seats "Brown duct tape" ?? BTW that shifter TIKI is "KILLER" love it !

« **Reply #49 on:** April 27, 2009, 10:18:35 PM »

Thanks again tom, I've been telling everyone I know with boats about you.
Today I mounted the bilges, and made 2 panels that go by the front seats to hold speakers. It's coming together, can't wait till Friday
