Header spacing

« **on:** February 18, 2013, 12:43:42 PM »

Is there a difference between blower headers and NA headers? I have a set of headers that came with my daytona which came off a blower motor and they are TIGHT!! Any suggestions

« **Reply #1 on:** February 18, 2013, 12:54:48 PM »

No difference try twistys or up swept

« **Reply #2 on:** February 18, 2013, 12:57:13 PM »

I have a set of upswepts and they wont even fit. One header tube is into the side of the boat.

« **Reply #3 on:** February 18, 2013, 01:23:29 PM »

Find a good welder and have the primary tubes shortened right off the header flange. Should be able to bring em in atleast an inch and a half and maybe roll em in to gain some more space

« **Reply #4 on:** February 18, 2013, 09:32:37 PM »

Generally a set of true blower headers will have larger primary tubes than standard headers.

I found that the twisties are much wider than the traditional type. I don't think I could even get a set of twisties in my hull.

On my Bassetts the second tube back sticks out the farthest. You might look into a set of Rewarders to see if they are a different pattern.

« **Reply #5 on:** February 18, 2013, 09:40:24 PM »

how far from the hull do headers need to be before stuff gets "too hot" ?

« **Reply #6 on:** February 18, 2013, 10:13:01 PM »

Quote from: ka0tyk on February 18, 2013, 09:40:24 PM

how far from the hull do headers need to be before stuff gets "too hot" ?

you need to be at least 3" and run it fat.

Beaver,I have some Rewarder twisties that are fairly tight, I will measure them tomorrow... Or after I finish my Fat Tire...

« **Reply #7 on:** February 18, 2013, 10:18:03 PM »

OK. So measuring from the flange straight out at a90 degree angle, the Rewarders are 8-1/2" out. In contrast, my Borla's are 10-1/2"...

Lemme know.

« **Reply #8 on:** February 18, 2013, 10:33:08 PM »

I will measure my headers tomorrow. I think mine are rewarders. I might have to do what keith did but I dont think I even have room for those heat shields.

« **Reply #9 on:** February 18, 2013, 10:50:58 PM »

i think you should do logs n snails

« **Reply #10 on:** February 18, 2013, 10:54:17 PM »

Lol. I might just have too

« **Reply #11 on:** February 19, 2013, 12:52:59 AM »

Or make your own zoomies

« **Reply #12 on:** February 19, 2013, 01:16:11 AM »

« **Reply #13 on:** February 19, 2013, 07:41:32 AM »

Quote from: GT Jets on February 18, 2013, 10:18:03 PM

OK. So measuring from the flange straight out at a90 degree angle, the Rewarders are 8-1/2" out. In contrast, my Borla's are 10-1/2"...

Lemme know.

I measured my Bassetts the same way, #5 was 8.25" out. (2.25" primaries)

Daniel

« **Reply #14 on:** February 20, 2013, 06:59:02 PM »

Buy a set of flanges and well make some at the shop. Or just put a blower on it and go with some zoomies

« **Reply #15 on:** February 20, 2013, 07:32:13 PM »

Quote from: RedSnapperSlapper on February 20, 2013, 06:59:02 PM

Buy a set of flanges and well make some at the shop. Or just put a blower on it and go with some zoomies

Is this project you speak of funded by redsnapperslapper racing?

« **Reply #16 on:** February 24, 2013, 09:15:53 PM »

So I measured my headers and they are over 10". i need to get a narrower set. Im looking to trade for some twisties in the same condition as my headers.

The Beav

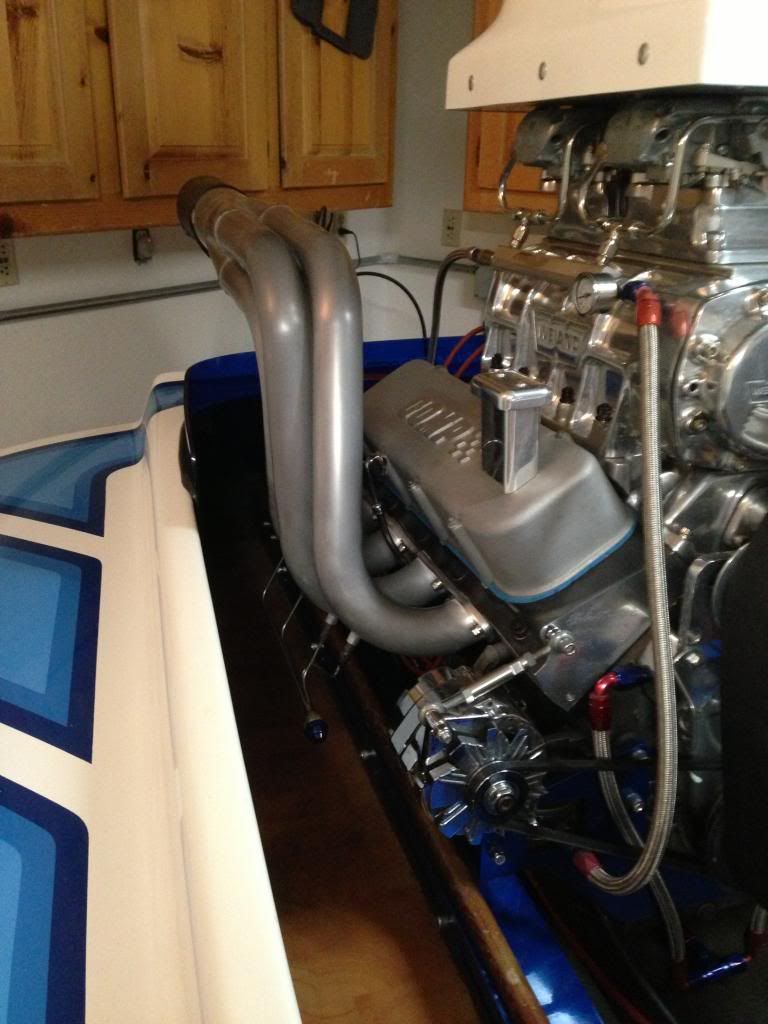

« **Reply #17 on:** February 25, 2013, 09:22:17 AM »

Hey Dave, we tried twisties on the Daytona. They fit but would have been too close
heat wise. We ended up with straight Rewarders and the closest tube is approx.
3 1/2" from either side of the boat.

We run ours dry and the gunnels get pretty hot. but I do tend to run it pretty hard. ( on occasion )

I would like to try a set of zoomies, but have not had the chance to try any for fit yet.
Maybe the laid backs would work well ?
Nick could allways make you up a set of custom stainless headers.

Looking forward to seeing you guys and that purdy new boat on the water.

« **Reply #18 on:** February 25, 2013, 09:58:49 AM »

Quote from: wetnreckless on February 25, 2013, 09:22:17 AM

Hey Dave, we tried twisties on the Daytona. They fit but would have been too close
heat wise. We ended up with straight Rewarders and the closest tube is approx.
3 1/2" from either side of the boat.

We run ours dry and the gunnels get pretty hot. but I do tend to run it pretty hard. ( on occasion )

I would like to try a set of zoomies, but have not had the chance to try any for fit yet.
Maybe the laid backs would work well ?
Nick could allways make you up a set of custom stainless headers.

Looking forward to seeing you guys and that purdy new boat on the water.

Hey Danny,

My headers i have now are like yours, except mine are off the head about 10" and are about 1" or less to the side of the boat. I have seen a ton of pictures with guys that have twisties and straight ones. i Think that the big problem is the spacing off the head. I would love to run zoomies but then i would need a blower and all that jaz

« **Reply #19 on:** March 03, 2013, 08:06:07 PM »

Im still looking for some headers. I would like some twisties and would trade my headers for some that are in good condition, since my headers are in great condition and are ceramic coated.

« **Reply #20 on:** March 03, 2013, 09:33:57 PM »

I dropped a link to some in your other thread

« **Reply #21 on:** March 03, 2013, 09:39:33 PM »

Quote from: SoCalPSD on March 03, 2013, 09:33:57 PM

I dropped a link to some in your other thread

For the zomies. Believe me if I could run them I would. Zoomies make no sense on a NA boat unfortunately

« **Reply #22 on:** March 03, 2013, 09:55:51 PM »

Then buy a blower

« **Reply #23 on:** March 03, 2013, 10:22:45 PM »

Lol. One day, one day

« **Reply #24 on:** March 04, 2013, 07:40:19 AM »

Beav,

PM sent

Daniel
