Diverter Nozzle Adjustment

« **Reply #25 on:** September 24, 2007, 02:43:42 PM »

Quote from: jet boat performance on September 24, 2007, 10:31:48 AM

Greg the biggest issues weve seen with that setup relate to the steer tube where it passes thru the transom adaptor (binding etc) . I could see where the leverage factor could probaly be increased slightly at the jet also what controller do you have? Tom

Tom, Here's what came with the boat...

The release catch is a bugger to operate when it's all connected up and there is some pressure on it. Any suggestions?

« **Reply #26 on:** September 24, 2007, 03:44:15 PM »

Quote from: GAWnCA on September 24, 2007, 02:43:42 PM

The release catch is a bugger to operate when it's all connected up and there is some pressure on it. Any suggestions?

Get rid of the piece of shit and give it to me .

-beerjet-

« **Reply #27 on:** September 24, 2007, 04:22:59 PM »

Quote from: GAWnCA on September 23, 2007, 08:31:34 PM

Thanks Tom. Have you got a good rudder in stock??? DAMN I've got to call you.

If Tom doesn't have one, I've got a good used one you can have, PM me your address

Skip

« **Reply #28 on:** September 24, 2007, 04:46:12 PM »

Quote from: beerjet on September 24, 2007, 03:44:15 PM

Get rid of the piece of shit and give it to me .

-beerjet-

Beerjet, with a statement like that it must be better than I think.

« **Reply #29 on:** September 24, 2007, 08:04:09 PM »

Greg thats a "trimetric cav plate controller" ,seen them used for diverters a lot my Bahner had one (didn't like it) It may be part of your problem (awkward) ?? Tom

« **Reply #30 on:** September 24, 2007, 08:15:38 PM »

Tom, Make a suggestion. It is DAMN awkward!!! $:-\$ Greg

Quote from: jet boat performance on September 24, 2007, 08:04:09 PM

Greg thats a "trimetric cav plate controller" ,seen them used for diverters a lot my Bahner had one (didn't like it) It may be part of your problem (awkward) ?? Tom

« **Reply #31 on:** September 24, 2007, 09:37:25 PM »

Quote from: GAWnCA on September 24, 2007, 08:15:38 PM

Tom, Make a suggestion. It is DAMN awkward!!! $:-\$ Greg

I talked to tom and he said send the piece of shit to me . Along with that ugly ass Hallcraft gas pedal . Trust me , you dont want them .

-beerjet-

« **Reply #32 on:** September 24, 2007, 09:43:24 PM »

Quote from: beerjet on September 24, 2007, 09:37:25 PM

I talked to tom and he said send the piece of shit to me . Along with that ugly ass Hallcraft gas pedal . Trust me , you dont want them .

-beerjet-

LMAO!!!!

I'll bet he did!! I like the gas pedal and just got it mounted where I like it. And what would you do with tis piece of shit?

« **Reply #33 on:** September 25, 2007, 08:50:45 AM »

I just changed over to an old Trimetric controller this season. I like it alot better than the Place control. For one thing, I don't think this one will experience the wear in the notched area the Place does. I've seen them get awfully sloppy over time. Another thing is that the Trimetric is alot more compact and clean. Just my opinion.

Also, do yourself a favor and ditch the rudder.

« **Reply #34 on:** September 25, 2007, 09:00:49 AM »

Where did you find that mounting bracket? Maybe I should take this one apart and clean it out. I notice you have the cable running out the front instead of the back, is your cable too long? Mine seems to be.

Quote from: Heatseeker on September 25, 2007, 08:50:45 AM

I just changed over to an old Trimetric controller this season. I like it alot better than the Place control. For one thing, I don't think this one will experience the wear in the notched area the Place does. I've seen them get awfully sloppy over time. Another thing is that the Trimetric is alot more compact and clean. Just my opinion.

Also, do yourself a favor and ditch the rudder.

« **Reply #35 on:** September 25, 2007, 09:12:59 AM »

I fabbed the bracket myself. I took the controller apart and rebuilt it before I installed it . I have it reversed because it seems to make more sense to pull the handle back for 'up' when I'm hammering the throttle. I just used a longer cable and looped it around underneath the deck before running it to the rear of the boat.

« **Reply #36 on:** September 25, 2007, 09:18:04 AM »

Quote from: Heatseeker on September 25, 2007, 09:12:59 AM

I fabbed the bracket myself. I took the controller apart and rebuilt it before I installed it . I have it reversed because it seems to make more sense to pull the handle back for 'up' when I'm hammering the throttle. I just used a longer cable and looped it around underneath the deck before running it to the rear of the boat.

Now that sounds like a plan. Might be that a new cable would help matters. How did you rebuild it and where did you find parts? Hmmm, You sound as if you might be a pilot, "pull back to go up!"

« **Reply #37 on:** September 25, 2007, 09:22:00 AM »

The rebuild consisted of a new handle pivot pin, bushed and re-bored handle, new cable pivot and cable mount, a fresh coat of paint(save for area of label, which was masked off for preservation) and re-polish.
It's like brand new.

« **Reply #38 on:** September 25, 2007, 09:38:59 AM »

Quote from: Heatseeker on September 25, 2007, 09:22:00 AM

The rebuild consisted of a new handle pivot pin, bushed and re-bored handle, new cable pivot and cable mount, a fresh coat of paint(save for area of label, which was masked off for preservation) and re-polish.
It's like brand new.

Did you make your own parts or is there a place to buy them? I don't have a machine shop.

« **Reply #39 on:** September 25, 2007, 09:44:03 AM »

Made them myself. I do have a machine shop at my disposal...

« **Reply #40 on:** September 25, 2007, 09:46:02 AM »

Quote from: Heatseeker on September 25, 2007, 09:44:03 AM

Made them myself. I do have a machine shop at my disposal...

Must be nice... Well, then maybe I'll just have to look for another solution. Darn!!

« **Reply #41 on:** September 25, 2007, 10:33:44 AM »

Send it over. For a fee, I can make you a custom mount and rebuild yours too!

« **Reply #42 on:** September 25, 2007, 05:47:52 PM »

Quote from: Heatseeker on September 25, 2007, 10:33:44 AM

Send it over. For a fee, I can make you a custom mount and rebuild yours too!

Let me get back to you on this one.

« **Reply #43 on:** September 25, 2007, 08:43:53 PM »

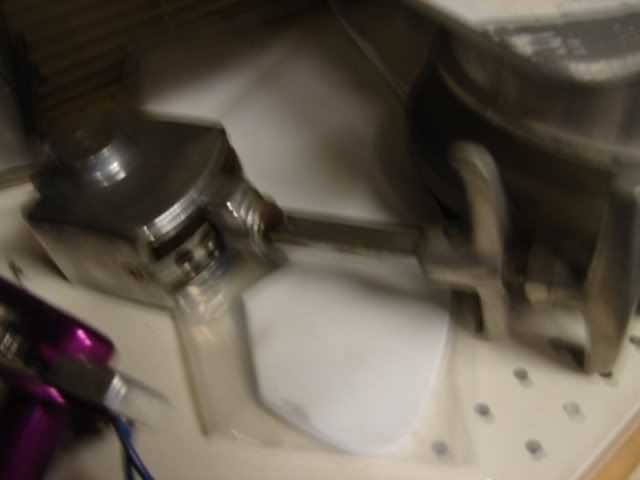

John wasn't ditzin the controller just found it "awkward' to operate in the Bahner at Speed never thought about the bracket to "rearrange' the positioning nice job on your bracket "machine man"

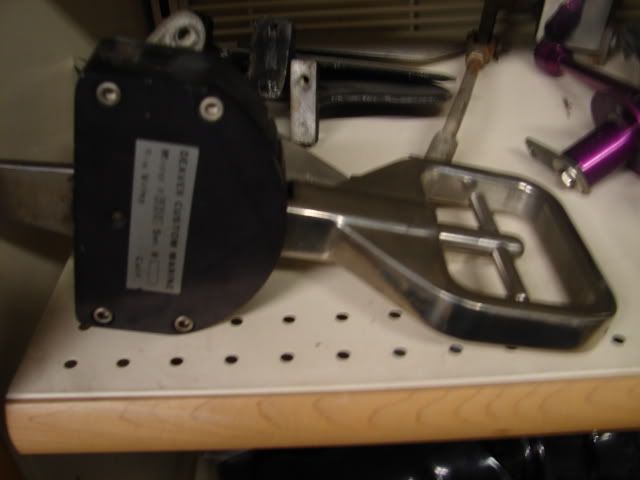

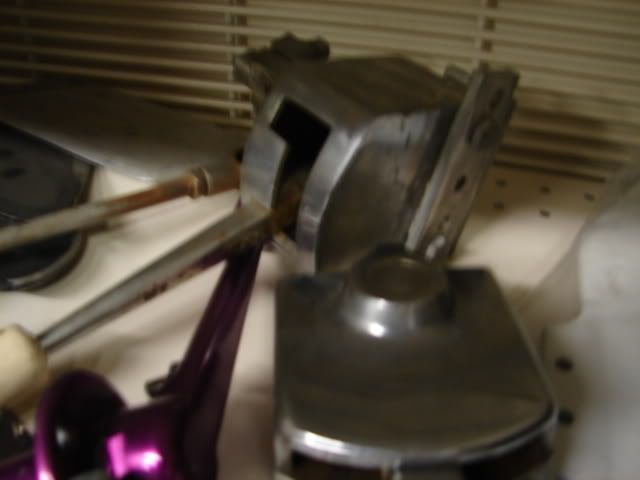

!! BTW I'm a huge fan of the "quality and work put in these old parts "ya just don't see that stuff nowadays' (sorry about the blur wrong Cam settings ,ps ,note the "similarities' in the deaver vs the trimetric

Tom

btw "Ro" found you a black anchor bungee !!,Its on the way !!!

« **Reply #44 on:** September 25, 2007, 09:22:48 PM »

Maybe I'll open this one up tomorrow and see how much gum is inside. Could be a good cleaning and maybe a different spring will make it work just fine.

« **Reply #45 on:** September 25, 2007, 09:47:10 PM »

Quote from: GAWnCA on September 24, 2007, 09:43:24 PM

I like the gas pedal and just got it mounted where I like it. And what would you do with tis piece of shit?

I'm actually lookin for a hallcraft pedal so I can do away with the lever throttle. Hallett used alot of hallcraft .

-beerjet-

« **Reply #46 on:** September 25, 2007, 09:51:47 PM »

Quote from: beerjet on September 25, 2007, 09:47:10 PM

I'm actually lookin for a hallcraft pedal so I can do away with the lever throttle. Hallett used alot of hallcraft .

-beerjet-

I like it because your foot isn't trapped!

« **Reply #47 on:** September 26, 2007, 05:56:18 AM »

Next question.... How do I measure the cable length I need? It seems to me I've got enough cable for the trim adjustment for a 25 foot boat. Logic tells me that the shortest cable run would have less binding. This run would be down the outside of the stringer straight back to the pump with maybe a foot or so for the slight curves needed to exit the hull.

« **Reply #48 on:** September 26, 2007, 06:50:57 AM »

if you need some machining and bushings-ill do it for the hell of it=got nothing to at work anyway

« **Reply #49 on:** September 26, 2007, 07:38:26 AM »

Quote from: just squirtin on September 26, 2007, 06:50:57 AM

if you need some machining and bushings-ill do it for the hell of it=got nothing to at work anyway

Thanks for the offer and I'll keep this in mind. I'll open it up today and see what I have and if there really is a problem. I'm thinking that this extra long cable could be part of the problem. Greg
